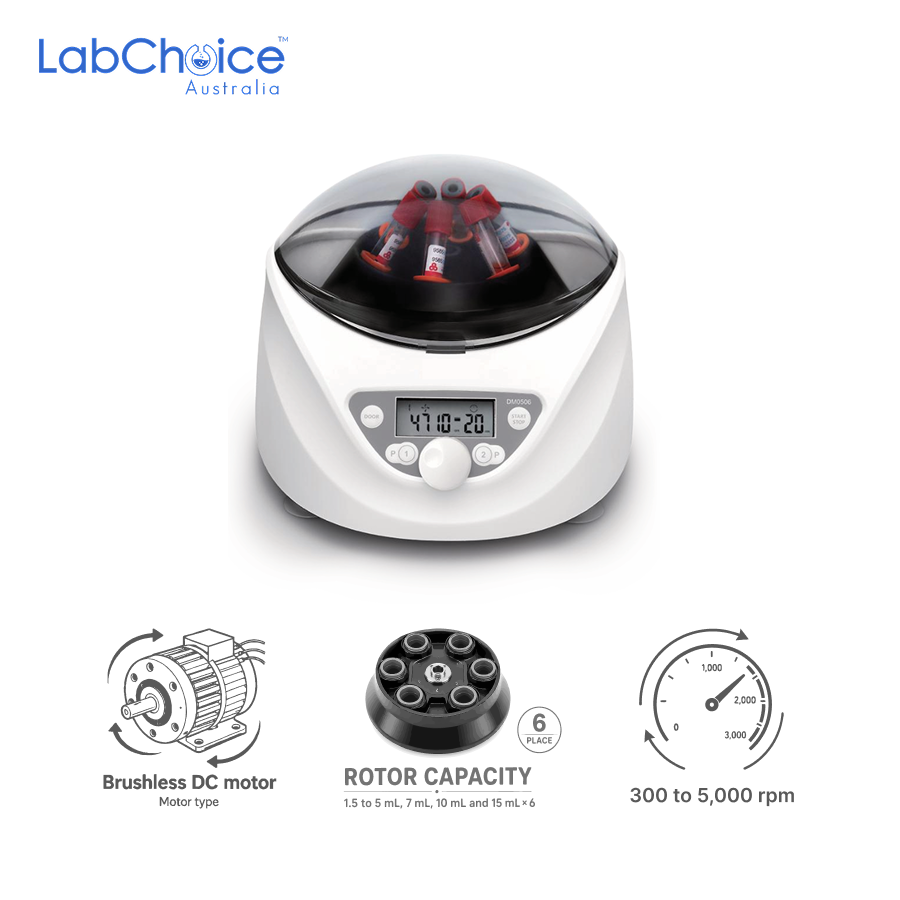

Low-Speed Clinical Centrifuge Multi-Tube Rotor with P1/P2 Programs, up to 5,000 rpm

Description

The Low-Speed Clinical Centrifuge Multi-Tube Rotor with P1/P2 Programs, up to 5,000 rpm, also known as a benchtop clinical centrifuge, laboratory specimen centrifuge or low-speed blood sample centrifuge, is designed for routine sample separation in clinical, pathology, biochemistry and biomedical research laboratories.

The centrifuge operates from 300 to 5,000 rpm in 10 rpm increments, generating a maximum relative centrifugal force of 2,600 × g. Speed accuracy of ±20 rpm and selectable rpm or RCF settings support controlled sample processing according to laboratory procedures.

Two rotor configurations accommodate different tube requirements. Option 1 features a 4 × 50 mL rotor, suitable for compatible larger-volume centrifuge tubes. Option 2 features a 6 × 15 mL rotor, with adapters supporting selected 1.5 mL, 2 mL and 5 mL tubes. Rotor and adapter compatibility must be checked against the tube dimensions.

The P1 and P2 programs provide convenient access to frequently used centrifugation settings. Users can set run times from 30 seconds to 99 minutes or select continuous operation. The LCD displays operating parameters, while an audible alert indicates completion. With one acceleration level and two deceleration settings, the centrifuge accommodates different sample-separation requirements. The selectable braking response can help reduce disturbance of separated sample layers when required by the laboratory method.

The maintenance-free brushless DC motor supports routine operation without motor-brush replacement. Safety features include an automatic lid-lock release after the run, door interlock, overspeed detection and internal diagnostic monitoring. Its compact 300 × 240 × 180 mm dimensions and 5.2 kg weight make it suitable for laboratory benchtops. The centrifuge operates from a single-phase 100–240 V, 50/60 Hz supply with a rated power consumption of 70 W.

The instrument supports serum and plasma preparation, urine sample processing, compatible sediment separation and routine laboratory centrifugation. Sample suitability depends on the selected rotor, tube construction, required RCF and validated laboratory procedure.

Safety Precautions: Always balance tubes by mass, use approved tubes and adapters, secure the rotor correctly and observe the maximum permitted speed and RCF for each configuration. Do not open the lid until the rotor has stopped completely.
