Sound & Waves
Advanced Resonance Apparatus for Sound and Frequency Experiments
AUD 232.90(Ex GST)
AUD 232.90(Ex GST)
- Advanced resonance apparatus for laboratory and educational use
- Designed for sound resonance and air-column experiments
- Includes 1 m long vertical stand with metric scale as listed
- Uses a 20 mm plastic tube connected to a 1 L water vessel
- Water level in the tube is adjusted by raising or lowering the vessel
- Supplied with tuning fork as listed
- Supports resonance detection by listening at the tube mouth
- Helps determine resonant air-column lengths
- Useful for calculating wavelength and frequency relationships
- Suitable for sound, waves and acoustics teaching
- Keep water away from electrical equipment and bench edges
- Use under appropriate laboratory or educational supervision
[request_quote_button]
- Description
- Datasheets & Manuals
Description

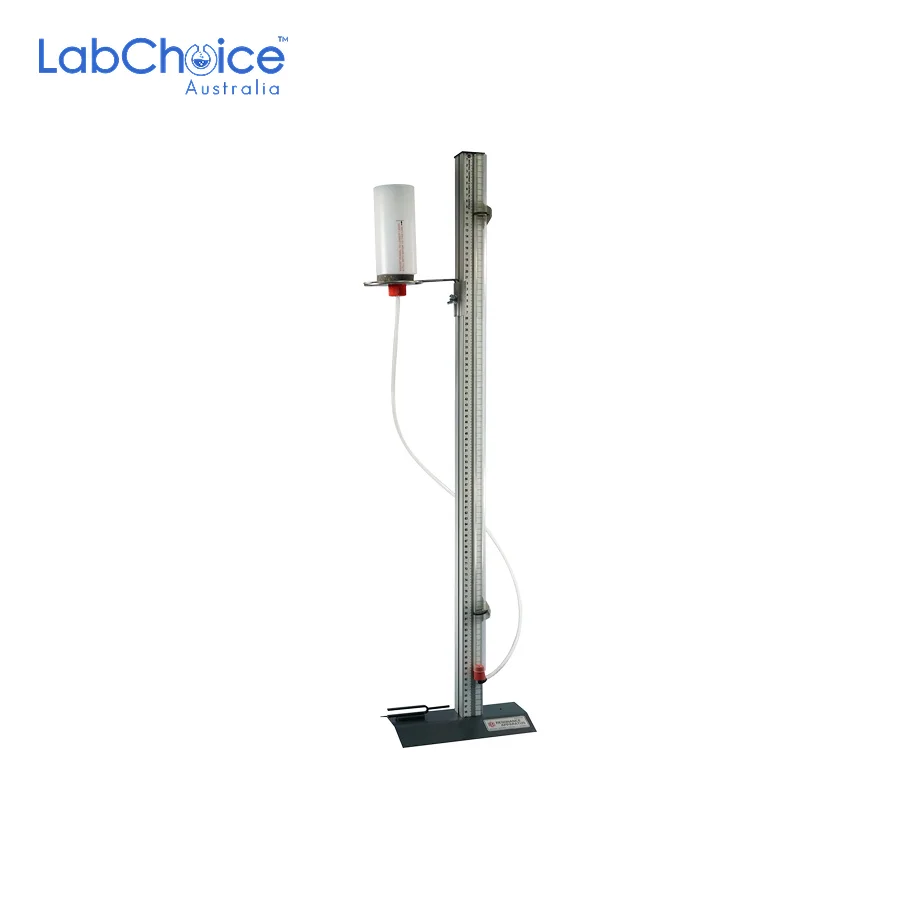

The Advanced Resonance Apparatus with 1 m Vertical Scale, also known as a resonance tube apparatus or air-column resonance apparatus, is designed for studying sound resonance in a controlled classroom or laboratory setup. The apparatus consists of a 1 m long vertical stand with metric scale and a 20 mm plastic tube connected to a 1 L vessel of water. The water vessel is raised or lowered to adjust the water level inside the tube. A tuning fork is provided so users can check for resonance by sounding the fork and listening at the mouth of the tube while the air-column length is adjusted.
When resonance is heard clearly, the corresponding air-column lengths can be marked or recorded from the vertical scale. These lengths can then be used in calculations involving wavelength, frequency and the speed of sound. This apparatus is suitable for teaching standing waves, resonance, sound wavelength, air-column behaviour and acoustic measurement in physics and general science practicals. Users should confirm the tuning fork frequency, tube condition, vessel capacity, water level movement, scale readability and classroom procedure before use.
Use the apparatus on a stable bench or demonstration area. Avoid spilling water, overfilling the vessel or placing the apparatus near electrical equipment. Handle the tuning fork, tube and stand carefully. Do not strike the tuning fork on hard glass, bench edges or unsuitable surfaces. This product is intended for laboratory or educational settings only and should be used under appropriate supervision. This item is supplied as the selected resonance apparatus with 1 m vertical scale only. Additional tuning forks, water, thermometer, sound sensors, worksheets, clamps, PPE and additional acoustics accessories are not included unless specified separately.
LabChoice Australia supplies Resonance Apparatus and acoustics teaching equipment for school science laboratories, university teaching laboratories and educational facilities requiring practical demonstrations of resonance, standing waves and sound behaviour.
Datasheets & Manuals
Document :
Product Information Sheet(Pdf)
Benchtop 10-Key Digital Blood Cell Counter, 0-99 Count
AUD 274.00(Ex GST)
Save 25%
Thermostat Heat Control with Combined Hot Plates & Magnetic Stirrer
From AUD 715.00 (Ex GST)
Constant Volume Thermometer for Charles’ Law Experiments
AUD 267.50(Ex GST)
Constantan Resistance Wire, Laboratory and Education Resistance Wire Range
From AUD 31.50 (Ex GST)
Digital Wine Refractometer, 0 to 45% Brix, 0 to 22% VOL
AUD 549.50(Ex GST)
Porcelain Beehive Shelves, 75 mm or 100 mm Diameter, For Gas Collection Over Water
From AUD 5.90 (Ex GST)
Scintillation Vial (Sample Vial), BORO 5.0
From AUD 416.50 (Ex GST)
Digital Max Min Indoor Outdoor Thermometer
AUD 61.50(Ex GST)
Optical d-Timer Non-Contact Ticker Tape Timer
AUD 237.00(Ex GST)
You May Also Need
Aluminium Siren Disc, 175 mm Diameter with 10/6 mm Stem
AUD 78.50(Ex GST)
Anodised Aluminium Resonance Tube for Sound and Frequency Experiments
AUD 65.90(Ex GST)
Blued Steel Tuning Forks, Sound and Vibration Demonstration Range
From AUD 7.50 (Ex GST)
Chladni Plate Set (2 Plates) with Violin Bow and Sand Included
AUD 248.90(Ex GST)
Powell’s Pattern Wave Motion Apparatus with Rotating Scale
AUD 219.50(Ex GST)

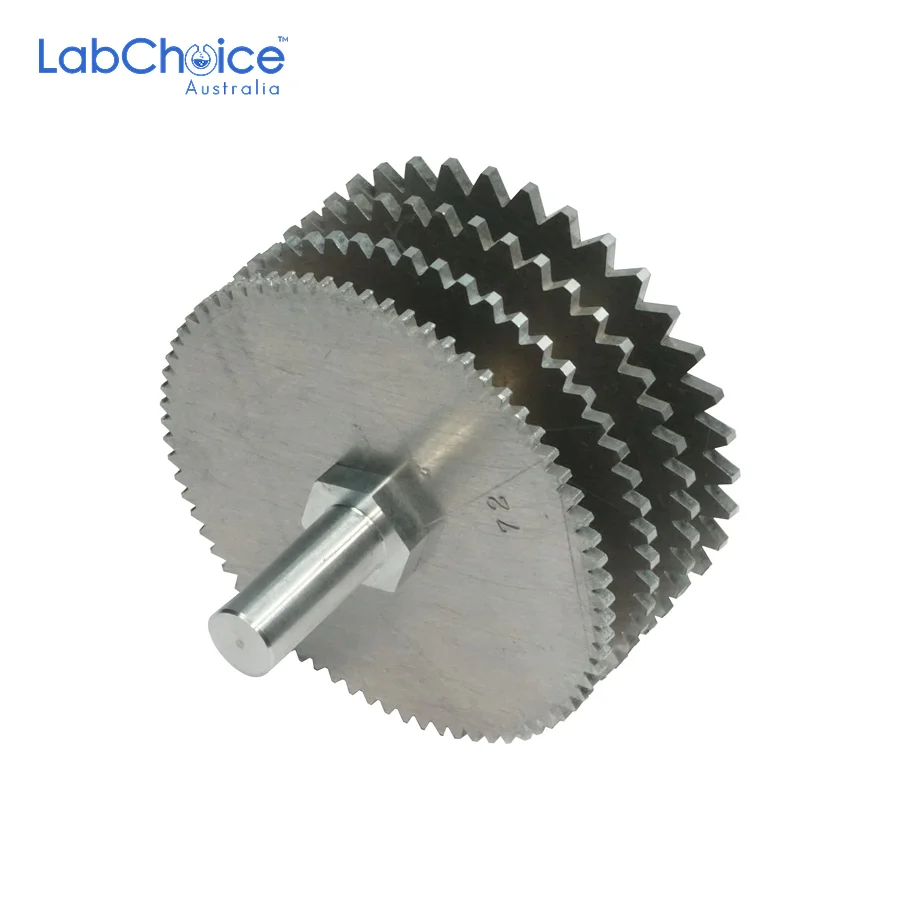

Savart’s Tone Wheel Alloy STEM Apparatus, 73 mm Discs
