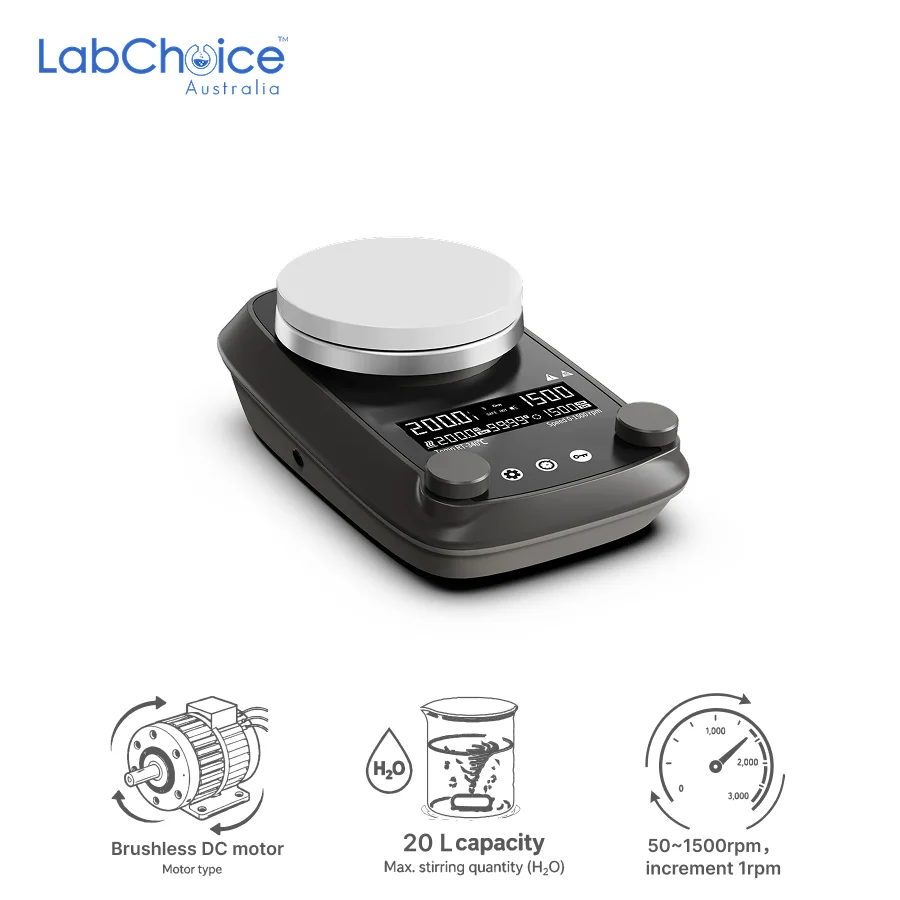

LCD Magnetic Hotplate Stirrer, 5 Inch Ceramic-Coated Aluminium Plate, up to 20 L Capacity

Description

The LCD Magnetic Hotplate Stirrer with 5 Inch Ceramic-Coated Aluminium Plate, also known as a laboratory hotplate magnetic stirrer, is designed for laboratory workflows that require controlled heating and magnetic stirring in one compact benchtop instrument. The unit is fitted with a Ø135 mm, 5 inch ceramic-coated aluminium work plate. This provides a practical heating and stirring surface for compatible laboratory vessels used in reagent preparation, solution mixing, sample heating and routine laboratory workflows. The maximum stirring quantity is listed as 20 L for water, supporting larger routine mixing tasks when used with suitable vessels, correct liquid volumes and compatible magnetic stir bars.

The speed range is listed as 50 to 1500 rpm, adjustable in 1 rpm increments. The LCD speed display supports accurate setting visibility, while the brushless DC motor provides stable and spark-free stirring operation for compatible laboratory applications. Heating operation is supported by a room temperature to 340°C temperature range, adjustable in 1°C increments. The adjustable safety temperature range is listed as 50 to 370°C, with overheating temperature protection at 420°C. Temperature control accuracy is listed as ±1°C below 100°C and ±1% above 100°C. Temperature display accuracy is listed as ±0.1°C, supporting clear monitoring during controlled heating workflows.

The unit supports a PT1000 external temperature sensor with listed accuracy of ±0.2°C where used. Users should confirm whether the PT1000 sensor is included or supplied separately before ordering. The LCD display shows speed, time and temperature, helping users monitor key operating parameters during heating and stirring. The timer function supports operation from 1 minute to 99 hours 59 minutes. Safety and usability features include a hot warning that flashes above 50°C, safety lock to help prevent setting changes, three heating modes for flexible operation and IP42 protection class for improved protection in suitable laboratory environments.

The stirrer has one stirring position and supports a maximum magnetic stir bar length of 80 mm. Power is listed as 650 W, with heating output of 600 W and motor rating output of 10 W. Voltage and frequency are listed as 100 to 120 V / 200 to 240 V, 50/60 Hz. The unit dimensions are listed as 270 × 175 × 98 mm, with a weight of 2.2 kg. Permissible ambient conditions are listed as 5 to 40°C and 80% RH. This product is suitable for solution preparation, reagent heating, chemical synthesis workflows, aqueous sample mixing, education practicals, QC sample preparation, research laboratory use and routine laboratory heating and stirring applications using compatible vessels and validated procedures.

LabChoice Australia supplies LCD Magnetic Hotplate Stirrers for schools, universities, research laboratories, chemical synthesis laboratories, quality control laboratories, testing facilities and general science laboratories requiring compact 20 L benchtop heating and stirring equipment.
