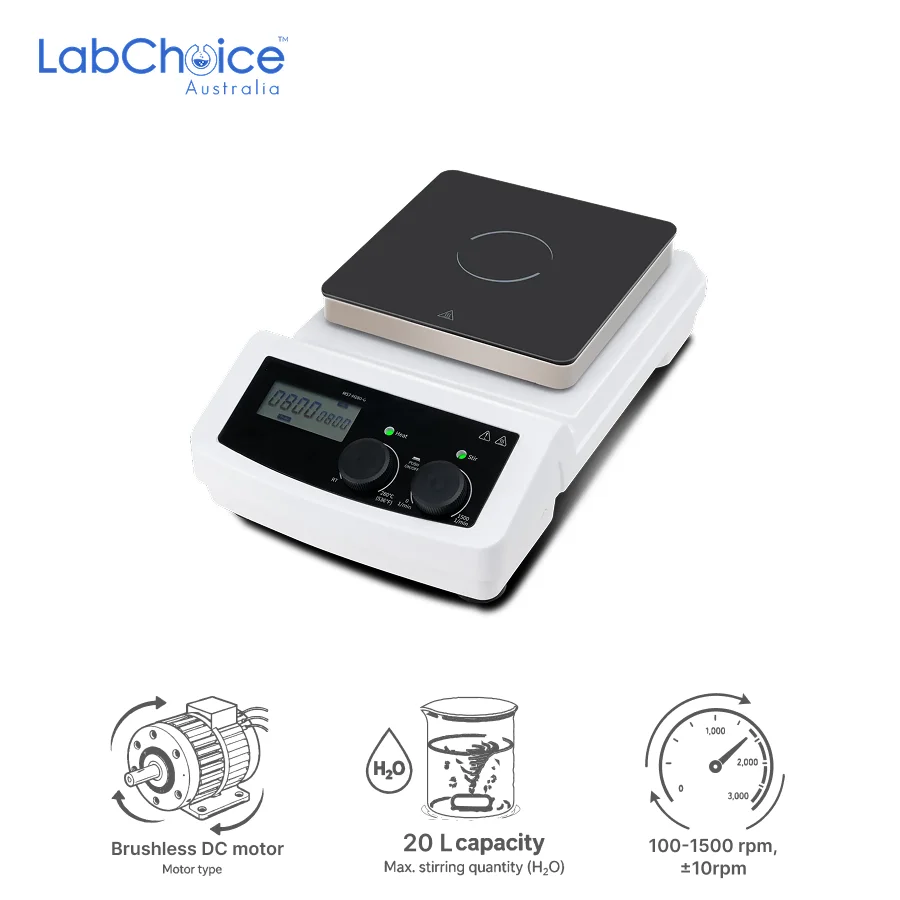

LCD Digital Infrared Heating Magnetic Stirrer, 7 Inch Microcrystalline Glass Plate, up to 20 L Capacity

Description

The LCD Digital Infrared Heating Magnetic Stirrer, also known as an infrared magnetic hotplate stirrer, is designed for laboratory workflows that require controlled heating and magnetic stirring in one compact benchtop unit. The unit is fitted with a 180 × 180 mm, 7 inch microcrystalline glass work plate. This smooth working surface supports compatible laboratory vessels during solution heating, reagent preparation, sample mixing and routine laboratory workflows. The maximum stirring quantity is listed as 20 L for water, making the stirrer suitable for medium-to-larger volume laboratory mixing when used with suitable vessels, correct stir bars and appropriate operating conditions.

The speed range is listed as 100 to 1500 rpm with ±10 rpm accuracy. The LCD speed display supports quick parameter checking, while the brushless DC motor provides stable stirring performance for compatible laboratory mixing applications. The infrared heating function supports controlled heating from room temperature to 280°C, adjustable in 1°C increments. Temperature display accuracy is listed as 0.1°C, allowing clear temperature monitoring during routine heating tasks. Temperature control accuracy is listed as ±1°C below 100°C and ±1% above 100°C. The supplied product data also states that PT1000 support can improve accuracy to ±0.2°C, so users should confirm probe inclusion and compatibility before ordering.

Safety-related features include a hot warning that flashes above 50°C and overheating temperature protection at 340°C. These features support safer routine operation when used according to laboratory procedures. The stirrer has one stirring position and supports a maximum magnetic stir bar length of 80 mm. The motor rating output is listed as 10 W, with total power of 1050 W and heating output of 1000 W. The unit includes an RS232 data connector for compatible remote control use. Users should confirm software, cable, communication settings and laboratory system compatibility before integrating remote operation.

Voltage and frequency are listed as 100 to 120 V / 200 to 240 V, 50/60 Hz. The unit dimensions are 215 × 360 × 112 mm, with a listed weight of 3.7 kg. Permissible ambient temperature is listed as 5 to 40°C. This product is suitable for solution preparation, reagent heating, sample mixing, aqueous laboratory workflows, education practicals, QC sample preparation, research laboratory use and routine laboratory heating and stirring applications.

LabChoice Australia supplies LCD Digital Infrared Heating Magnetic Stirrers for schools, universities, research laboratories, quality control laboratories, testing facilities and general science laboratories requiring a practical 20 L digital hotplate stirrer.
