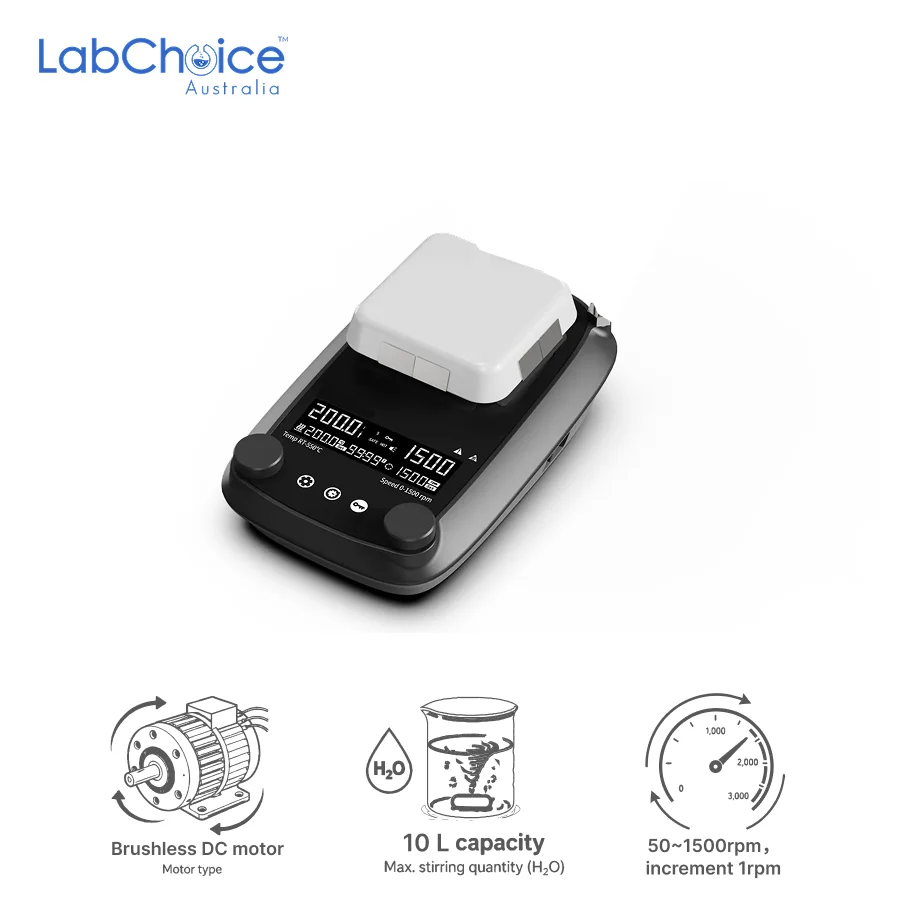

LCD Magnetic Hotplate Stirrer with 4 Inch Glass Ceramic Plate, 10 L Capacity

Description

The LCD Magnetic Hotplate Stirrer with 4 Inch Glass Ceramic Plate, also known as a compact laboratory hotplate magnetic stirrer, is designed for laboratory workflows that require controlled heating and magnetic stirring in one space-efficient benchtop unit. The unit is fitted with a 100 × 100 mm, 4 inch glass ceramic work plate. This compact surface supports suitable laboratory vessels during reagent preparation, solution heating, sample mixing and routine bench work where space efficiency is important.

The maximum stirring quantity is listed as 10 L for water, making the stirrer suitable for general laboratory mixing when used with compatible vessels, appropriate liquid volumes and suitable magnetic stir bars. The speed range is listed as 50 to 1500 rpm, adjustable in 1 rpm increments. The LCD speed display supports clear parameter monitoring, while the brushless DC motor provides stable stirring operation for compatible laboratory workflows.

Heating operation is supported by a room temperature to 550°C temperature range, adjustable in 1°C increments. The adjustable safety temperature range is listed as 50 to 580°C, with overheating temperature protection at 580°C. Temperature control accuracy is listed as ±1°C below 100°C and ±1% above 100°C. Temperature display accuracy is listed as 0.1°C, supporting clear monitoring of heating conditions during routine laboratory use.

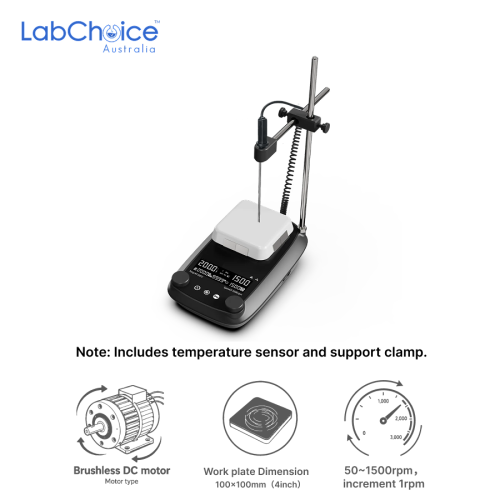

The unit supports a PT1000 external temperature sensor with listed accuracy of ±0.2°C where used. Users should confirm whether the PT1000 sensor is included or supplied separately before ordering. The LCD display shows set and real-time values, including speed, time and temperature. The timer function supports operation from 1 minute to 99 hours 59 minutes, helping users manage longer heating and stirring procedures.

Safety-related features include a hot warning that flashes above 50°C and remains active after power-off, helping alert users to residual plate heat after operation. The stirrer has one stirring position and supports a maximum magnetic stir bar length of 40 mm. The instrument has an IP21 protection class, 10 W motor rating output, 460 W total power and 410 W heating output. Voltage and frequency are listed as 100 to 120 V / 200 to 240 V, 50/60 Hz. The unit dimensions are listed as 270 × 175 × 108 mm, with a weight of 2.2 kg. Permissible ambient conditions are listed as 5 to 40°C and 80% RH. This product is suitable for solution preparation, reagent heating, aqueous sample mixing, teaching laboratory practicals, QC sample preparation, research laboratory work and routine heating and stirring applications.

LabChoice Australia supplies LCD Magnetic Hotplate Stirrers for schools, universities, research laboratories, quality control laboratories, testing facilities and general science laboratories requiring compact benchtop heating and stirring equipment.
