CO₂ Resistant Orbital Shaker, 30 to 300 rpm

Description

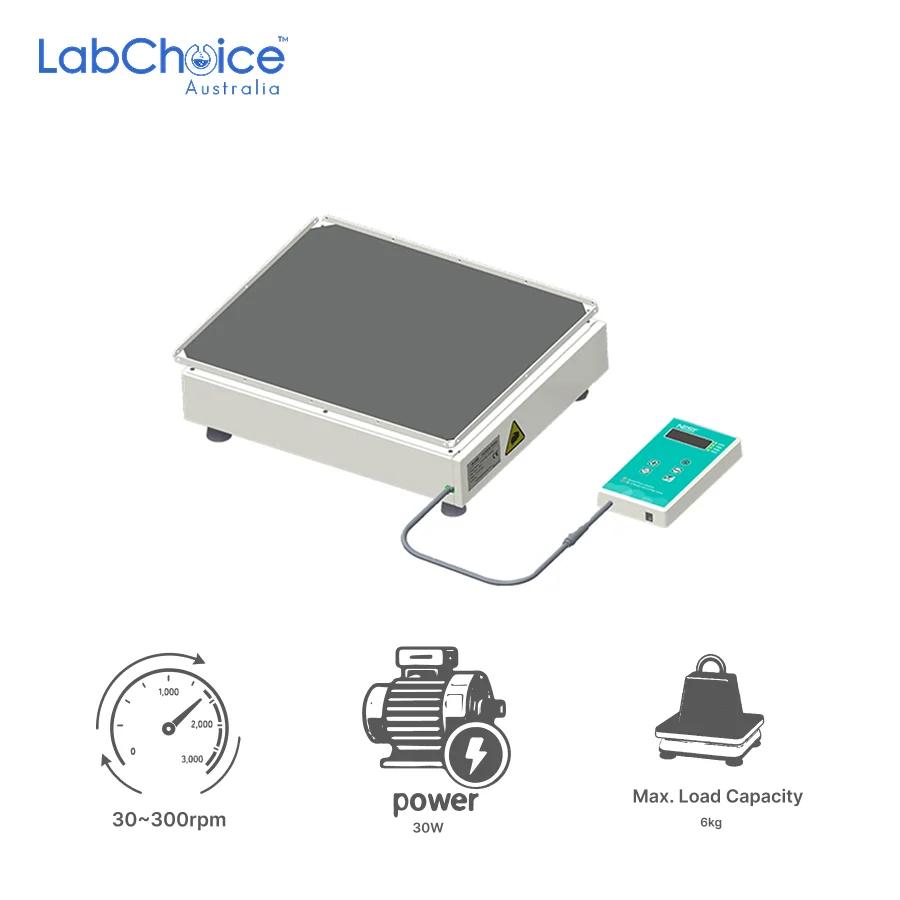

The CO₂ Resistant Orbital Shaker, also known as a CO₂ incubator orbital shaker, is designed for shaking applications inside high humidity and CO₂-controlled environments. It can also be used as a common laboratory orbital shaker outside a CO₂ incubator. This shaker uses a magnetic drive mechanism composed of magnets and sealed electrical coils. The magnetic drive eliminates the need for belt replacement, helping support long service life and reduced maintenance requirements.

The unit provides an orbital shaking speed range from 30 to 300 rpm, with a 19 mm orbit diameter. This makes it suitable for controlled mixing, gentle agitation and culture-related shaking workflows where compatible vessels and operating conditions are used. The shaker is designed with a small footprint for use inside compatible CO₂ incubators. Specially treated mechanical components help protect the shaker in conditions up to 20% CO₂ and 95% humidity, while the listed ambient operating condition supports 5 to 60°C and humidity below 99% RH.

The external control box can be detached from the shaker body, allowing speed and time settings to be adjusted remotely without opening the incubator chamber door. This helps reduce disturbance to the CO₂ chamber environment during operation. The LED display provides clear parameter visibility, while the timer supports 0 to 99 h 59 min. A setting of 0 supports continuous operation, depending on the selected workflow.

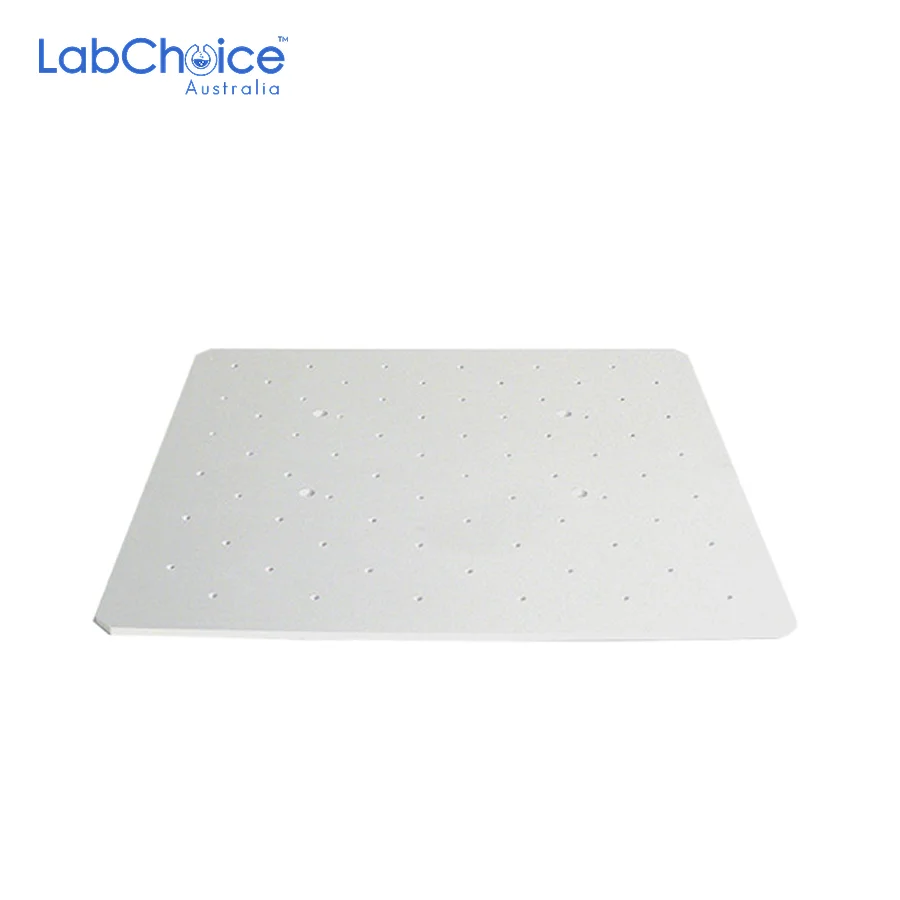

The aluminium platform measures 355 × 300 mm and the maximum load is listed as 6 kg. Listed flask capacity examples include 50 mL × 30, 100 mL × 15, 150 mL × 15, 200 mL × 15, 250 mL × 15, 500 mL × 9, 1000 mL × 6, 2000 mL × 4, 3000 mL × 2 and 5000 mL × 1, subject to clamp selection, vessel fit and load balance. The machine body dimensions are listed as 360 × 300 × 96 mm, the control box dimensions are 360 × 105 × 75 mm, and the complete unit footprint is listed as 360 × 405 × 96 mm. The machine body weight is listed as 17.5 kg and the control box weight is listed as 1 kg.

The power rating is listed as 30 W, with AC100 to 240 V, 50/60 Hz power supply compatibility. Minimal heat dissipation helps reduce unwanted impact on controlled CO₂ chamber conditions. Accessories may include 100 mL flask clamps × 2, 250 mL flask clamps × 4, 500 mL flask clamps × 4, 1000 mL flask clamps × 2, 2000 mL flask clamps × 2 and aluminium platform × 1. Only product code 105009 is listed as containing these accessories, so accessory inclusion should be confirmed before ordering.

This shaker is suitable for cell culture workflows, CO₂ incubator shaking, flask culture agitation, biological sample mixing, research laboratories, biotechnology laboratories and teaching or shared laboratory facilities requiring controlled orbital shaking in compatible environmental conditions. This item is supplied as the selected CO₂ resistant orbital shaker configuration only. Flask clamps, platform accessories and other items are included only where specified for the selected product code.

LabChoice Australia supplies CO₂ Resistant Orbital Shakers for cell culture laboratories, university research facilities, biotechnology laboratories, microbiology laboratories and general laboratory environments requiring incubator-compatible orbital shaking equipment.
