5 Roller Tube Mixer
From $1,993.00 (Ex GST)
- 5 roller formats suit blood tubes, vials, small bottles and test tubes
- Tilt model provides rocking and rolling motion for thorough sample mixing
- No-tilt model uses parallel rollers for smooth rolling without tilt
- Variable 10 to 60 rpm speed range suits different mixing requirements
- Holds up to 24 x 5 mL blood tubes, with 1 kg per roller pair
- Chain and sprocket drive supports smooth, trouble-free operation
- Description
- Specifications
Description
5 Roller Tube Roller Mixer range is ideal for mixing blood samples, viscous substances, and liquid-solid suspensions where minimal aeration is required. It can also be used to help with sample defrosting.
This combined 5 roller range includes the standard tilt model and the no-tilt parallel roller model. Both formats can accommodate a range of different vials, small bottles, and test tubes of various sizes, with each pair of rollers able to hold up to 1 kilogram. The 5 roller models can hold up to 24 x 5 mL blood tubes.
The standard 5 roller model uses coated aluminium rollers mounted on eccentric drive spindles to provide both rocking and rolling motion for thorough mixing action. Parallel rollers can be specified if preferred. The no-tilt model uses coated aluminium rollers running parallel to create a smooth rolling action without tilt.
Roller speed is variable between 10 and 60 rpm to suit a wide range of mixing requirements. The sprocket and chain drive, combined with ball race roller mounting, support smooth and trouble-free operation. The 5 roller tilt and no-tilt formats can run continuously for many hours unattended. Also known as an analogue tube roller, test tube roller, roller mixer, or tissue culture roller.

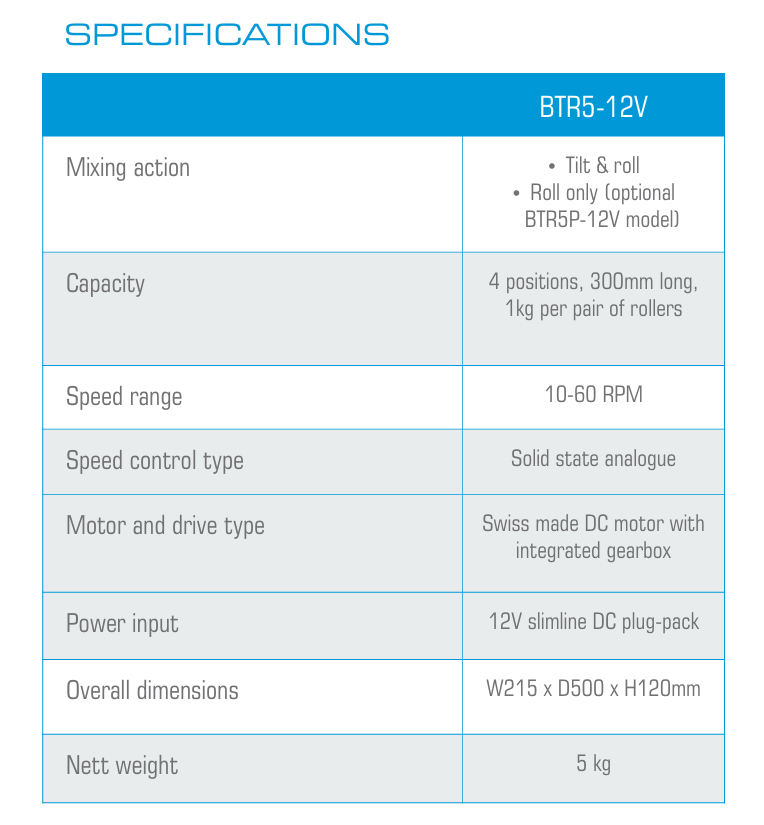

Specifications
- Available formats: 5 roller tilt and 5 roller no-tilt models
- Power requirements: 12 VDC
- Control type: Solid state with variable speed between 10 and 60 rpm
- Motor: 12 volt DC geared
- Drive: Chain and sprockets
- Rollers: 30 mm diameter x 300 mm long
- Roller construction: Coated aluminium rollers
- Tube capacity: Up to 24 x 5 mL blood tubes
- Load capacity: Each pair of rollers can hold up to 1 kilogram
- Tilt model motion: Rocking and rolling motion from eccentric drive spindles
- No-tilt model motion: Parallel rollers for smooth rolling action without tilt
- Tilt angle: 3.5° from horizontal, 7° overall per revolution for tilt model
- Overall dimensions: L500 x W215 x H120
- Weight: 5.0 kg
- Continuous operation: Can run continuously for many hours unattended
