Laboratory Equipment | Hotplate & Magnetic Stirrer | Magnetic Stirrer Hotplate Combo

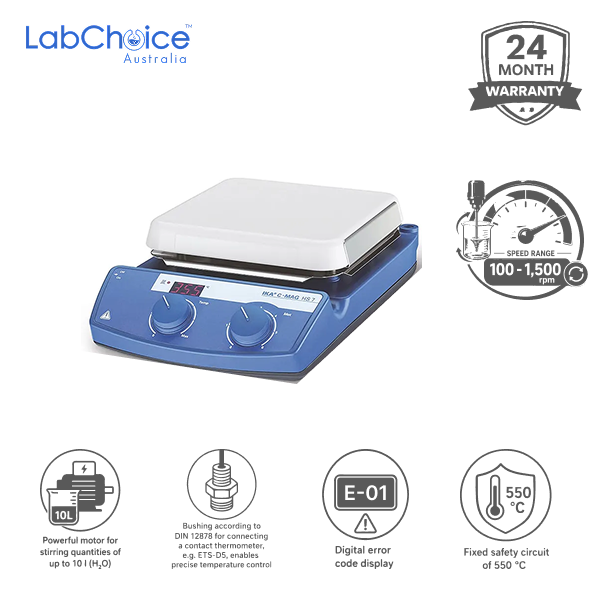

Magnetic Stirrer Hotplate IKA C-Mag HS7 with Ceramic Heating Plate, Up to 10 L Capacity
$1,668.50(Ex GST)
- Powerful motor supports stirring quantities up to 10 L H₂O for laboratory mixing.
- Fixed 550°C safety circuit helps protect the unit during high-temperature operation.
- Hot Top indicator warns of hot surfaces to help reduce burn risk.
- Digital LED display allows exact temperature setting and clear operating control.
- DIN 12878 bushing connects contact thermometers for precise temperature control.
- Digital error code display and elevated panel improve fault visibility and spill protection during use.
- Description
Description
Magnetic Stirrer Hotplate IKA C-Mag HS7 is a single-position laboratory hotplate stirrer designed for controlled heating and magnetic stirring of liquid samples in research, education, quality control and routine laboratory environments. Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance. The 180 x 180 mm ceramic set-up plate provides a practical working surface for compatible laboratory vessels, while the unit supports stirring quantities up to 10 L of water.
The IKA C-Mag HS7 provides a stirring speed range of 100 to 1,500 rpm and a heating temperature range from 50 to 500°C. Its 1,000 W heat output supports efficient heated stirring for routine solution preparation, reagent warming, sample mixing and controlled laboratory heating tasks. The LED set-value temperature display allows users to view the selected heating temperature clearly, while the turning knob heat control and scale-based speed adjustment support straightforward operation during daily laboratory use.
For practical operation, the IKA C-Mag HS7 includes a fixed 550°C safety circuit, external temperature sensor connection for ETS-D5, ceramic set-up plate and IP21 protection class according to DIN EN 60529. With a maximum load capacity of 15 kg, maximum stirring bar length of 80 mm and a 180 x 180 mm heating surface, it is suitable for compatible laboratory vessels used in controlled heating and stirring workflows.
LabChoice Australia supplies the Magnetic Stirrer Hotplate IKA C-Mag HS7 for Australian laboratories, schools, universities and testing facilities requiring reliable heated magnetic stirring. With its ceramic heating plate, 10 L stirring capacity, 50 to 500°C heating range and 100 to 1,500 rpm speed control, it offers a practical option for routine laboratory workflows where chemical resistance, heating performance and stirring control are important.
| Technical Data | Details |
|---|---|
| Number of Stirring Positions | 1 |
| Stirring Quantity Max. Per Stirring Position (H2O) | 10 L |
| Maximum Load | 15 Kg |
| Motor Rating Output | 1.5 W |
| Direction of Rotation | Left |
| Speed Adjustment Scale | (0 – 6) |
| Speed Range | 100 – 1,500 rpm |
| Stirring Bar Length Max | 80 mm |
| Heat Output | 1,000 W |
| Temperature Display Set Value | LED |
| Heating Temperature Range | 50 – 500 c |
| Heat Control | Turning Knob |
| Temperature Setting Resolution of Heating Plate | 5 K |
| Connection for ext. Temperature Sensor | ETS – D5 |
| Fixed Safety Circuit | 550 c |
| Set-up Plate Material | Ceramic |
| Se-up Plate Dimensions | 180 x 180 mm |
| Heating Rate (1L H2O in H1500) | 5K / min |
| Dimensions (W x H x D) | 220 x 105 x 335 mm |
| Weight | 5 Kg |
| Protection Class According to DIN EN 60529 | IP21 |
Frequently Bought Together
LCD Magnetic Hotplate Stirrer Package with 4 Inch Glass Ceramic Plate, 10 L Capacity

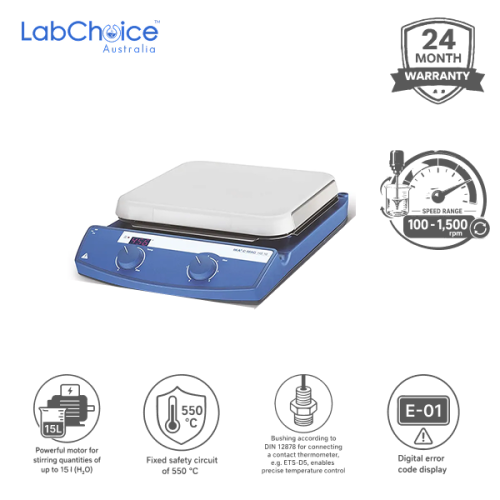

Magnetic Stirrer Hotplate IKA C-Mag HS10, up to 15 L Capacity
