LCD Digital Thermo Mix with Heating, Cooling, Touch Operation and Choice of 1 Heating Block (Magnetic Fixation)
- Integrated heating and cooling thermo system for flexible laboratory workflows
- Supplied with choice of 1 compatible heating block to suit selected tube or vessel formats
- Wide temperature range from 25°C below room temperature up to 110°C
- Temperature setting range listed as -5°C to 110°C for precise heating and cooling control
- Temperature accuracy and uniformity specified as ±0.5°C at 20 to 45°C
- Magnetic fixation system allows fast, tool-free block placement and secure positioning
- Touch operation interface with TFT display for clear control and real-time monitoring
- Programmable operation supports repeatable multi-stage laboratory procedures
- Suitable for sample preparation, incubation, mixing and temperature-controlled reactions
- Compact benchtop design with interchangeable blocks for different sample formats
[request_quote_button]
- Description
Description
The LCD Digital Thermo Mix with Heating, Cooling, Magnetic Fixation and Choice of 1 Heating Block, also known as a laboratory heating and cooling thermo system, is designed for controlled temperature workflows where compact design, programmable operation, magnetic block positioning and safe sample handling are required. This unit supports heating and cooling functions for routine laboratory applications. The temperature range supports 25°C below room temperature up to 110°C, while the temperature setting range is listed as -5°C to 110°C. Temperature control accuracy is specified as ±0.5°C at 20 to 45°C, with temperature uniformity also listed as ±0.5°C at 20 to 45°C.
The system provides precise temperature control for compatible sample preparation, incubation-style holding, cooling workflows and routine temperature-controlled laboratory procedures. The time setting range supports 0 minutes to 99 hours 59 minutes, allowing users to manage both short and extended heating or cooling processes. The supplied specifications list a maximum heating speed of 5.5°C/min. Cooling speed is listed as 2.5°C/min from 100°C to room temperature and 0.5°C/min below room temperature, supporting controlled temperature reduction during compatible laboratory workflows.
Magnetic fixation supports quick block placement and secure positioning during compatible heating and cooling operation. Interchangeable sample blocks are available for compatible tube and sample formats, helping laboratories adapt the unit to different vessel requirements. The unit includes touch operation and a TFT display for clear digital control and monitoring. Program memory supports 9 stored programs, making the system suitable for repeated routine workflows where consistent temperature settings are required. This product is supplied with choice of 1 compatible heating block for the LCD Digital Thermo Mix, with block size to be selected. Users should confirm heating block format, tube size, sample vessel fit, selected block size and operating conditions before use. The supplied specifications list 180 W power, 110/220 V, 50/60 Hz, 200 × 235 × 120 mm dimensions and 7.3 kg weight. The permissible ambient temperature is listed as 10 to 40°C, with permissible ambient humidity below 80% RH. Overheating protection is listed at 150°C to support safer routine operation.
LabChoice Australia supplies LCD Digital Thermo Mix systems for school laboratories, university teaching spaces, molecular biology laboratories, research laboratories and routine sample preparation workspaces requiring programmable heating, cooling, magnetic block positioning and reliable temperature-controlled sample handling.
| Specification | Details |
|---|---|
| Temperature Setting range | -5-110℃ |
| Temperature uniformity@20-45 | ±0.5℃ |
| Max Heating speed | 5.5℃/min |
| Functions | Heating/cooling |
| Overheating protection | 150℃ |
| Display | TFT |
| Dimension [WxDxH] | 200x235x120 mm |
| Permissible ambient temperature | 10-40℃ |
| Temperature range | Below room temp-25-110℃ |
| Temperature control accuracy@20-45 | ±0.5℃ |
| Time setting range | 0min – 99h 59min |
| Max Cooling speed | 2.5℃/min（100℃-room temp） 0.5℃/min（below room temp） |
| Program memory | 9 |
| Power | 180 W |
| Voltage/Frequency | 110/220V，50/60Hz |
| Weight | 7.3 kg |
| Permissible ambient humidity | <80% RH |
Mini Magnetic Stirrer, 1L and 2L Capacity , Brushless Motor
From $99.90 (Ex GST)
Stainless Steel Probe, Double Ended 14 cm Fine Point
$1.90(Ex GST)
Rocker Oil-Free Vacuum Pump for Clean Laboratory Vacuum Support
From $722.50 (Ex GST)
Simple Heating Mantles, Controlled Heating for Round Bottom Flasks
From $311.50 (Ex GST)

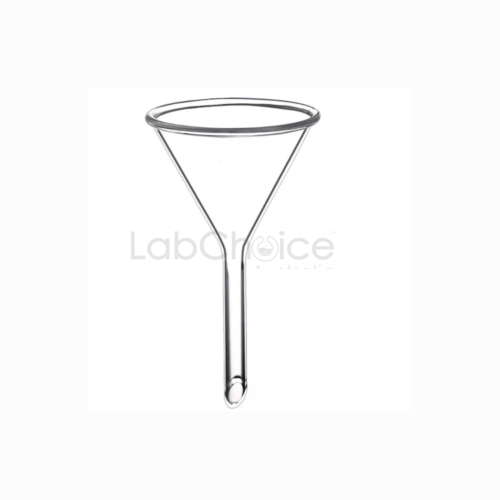

Filter Funnels Long Stem 60 Degree Cone, BORO 3.3 Glass
