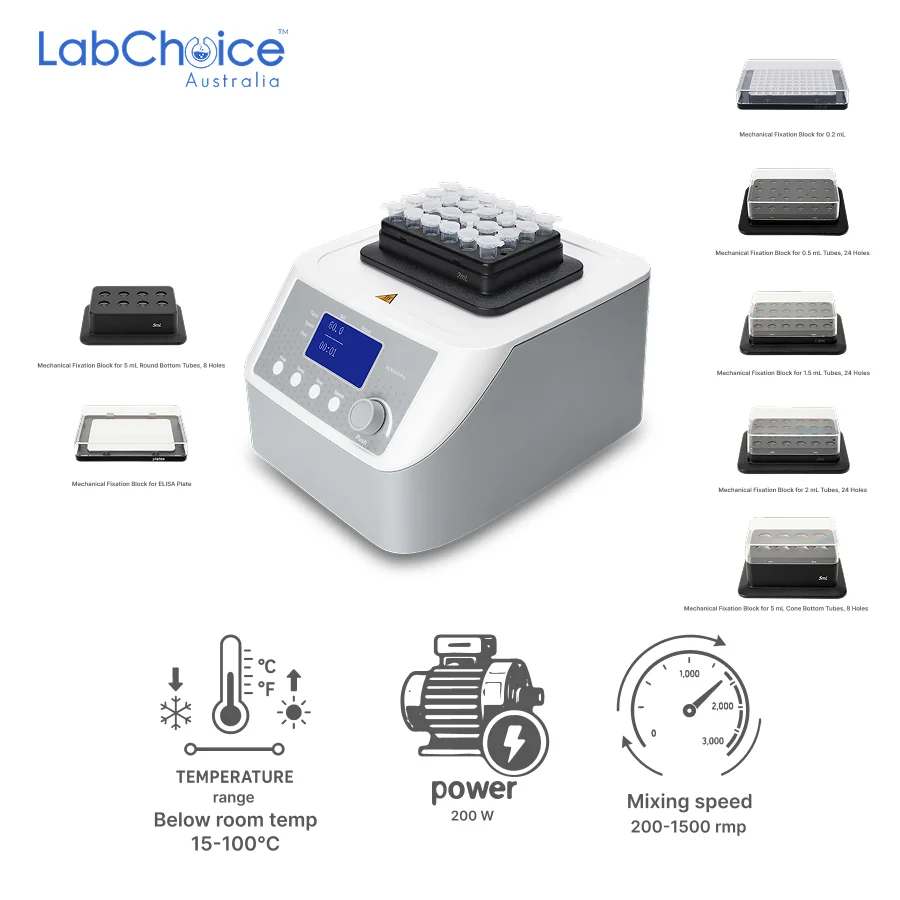

LCD Digital Thermo Mix with Heating, Cooling, Mixing and Choice of 1 Heating Block
- Heating, cooling and mixing functions in one compact thermo mix unit
- Supplied with choice of 1 compatible heating block
- Temperature control range supports 15°C below room temperature up to 100°C
- Temperature setting range listed as 0°C to 100°C
- Mixing speed range from 200 to 1500 rpm with 3 mm mixing orbit
- Mechanical fixation supports secure block positioning during operation
- Touch operation with real-time speed, temperature and time display
- Programmable operation with multiple memory settings for repeatable workflows
- Quick interchange block system enables tool-free block changes and flexible tube compatibility
- Built-in safety and calibration features support consistent performance and long-term temperature stability
[request_quote_button]
- Description
Description
The LCD Digital Thermo Mix with Heating, Cooling, Mixing and Choice of 1 Heating Block, also known as a laboratory thermo mixer, is designed for controlled sample heating, cooling and mixing workflows where precise temperature regulation, programmable operation and secure block positioning are required. This thermo mix system combines heating, cooling and mixing functions in one compact laboratory unit. The temperature control range supports 15°C below room temperature up to 100°C, while the temperature setting range is listed as 0°C to 100°C. Temperature control accuracy is specified as ±0.5°C at 20 to 45°C, with temperature uniformity also listed as ±0.5°C at 20 to 45°C.
The mixing function supports 200 to 1500 rpm with a 3 mm mixing orbit, making the unit suitable for compatible tube-based sample mixing, incubation-style preparation and temperature-controlled laboratory workflows. Mechanical fixation supports secure block positioning during compatible heating, cooling and mixing operation. The unit includes touch operation for straightforward digital control during routine use. Real-time display of speed, temperature and time helps users monitor operating conditions clearly throughout the workflow. The system is fully programmable and includes 9 program memory settings. The time setting range supports 0 minutes to 99 hours 59 minutes, allowing laboratories to manage short and extended sample preparation procedures using suitable methods and compatible vessels.
The supplied specifications list a maximum heating speed of 5.5°C/min. Cooling speed is listed as 5°C/min from 100°C to room temperature and 0.5°C/min below room temperature, supporting controlled temperature changes during compatible sample workflows. The quick interchange block system allows blocks to be changed without tools, while automatic block recognition supports easier setup. The unit is compatible with most popular tube formats when used with suitable interchangeable blocks. The block lid supports heat preservation during compatible sample workflows. Temperature self-calibration supports long-term temperature accuracy, while overheating protection is listed at 150°C. The supplied specifications list 200 W power, TFT display, 110/220 V, 50/60 Hz, 200 × 235 × 120 mm dimensions and 7.3 kg weight. The permissible ambient temperature is listed as 10 to 40°C, with permissible ambient humidity below 80% RH. This product is supplied with choice of 1 compatible heating block for the LCD Digital Thermo Mix. Users should confirm heating block format, tube size, vessel fit, operating speed and application suitability before use.
LabChoice Australia supplies LCD Digital Thermo Mix systems for school laboratories, university teaching spaces, molecular biology laboratories, research laboratories and routine sample preparation workspaces requiring programmable heating, cooling, mixing and secure tube handling performance.
| Specification | Details |
|---|---|
| Temperature Setting range | 0-100℃ |
| Temperature uniformity@20-45 | ±0.5℃ |
| Max Heating speed | 5.5℃/min |
| Functions | Heating/cooling/mixing |
| Mixing orbit | 3 mm |
| Overheating protection | 150℃ |
| Display | TFT |
| Dimension [WxDxH] | 200x235x120 mm |
| Permissible ambient temperature | 10-40℃ |
| Temperature range | Below room temp 15-100℃ |
| Temperature control accuracy@20-45 | ±0.5℃ |
| Time setting range | 0 min – 99 h 59 min |
| Max Cooling speed | 5℃/min（100℃-room temp） 0.5℃/min（below room temp） |
| Mixing speed | 200-1500 rmp |
| Program memory | 9 |
| Power | 200 W |
| Voltage/Frequency | 110/220V，50/60Hz |
| Weight | 7.3 kg |
| Permissible ambient humidity | <80% RH |
Humidity Measurement Instruments For Laboratory
From $12.50 (Ex GST)
Cleaning Brushes For Laboratory Glassware
From $2.50 (Ex GST)

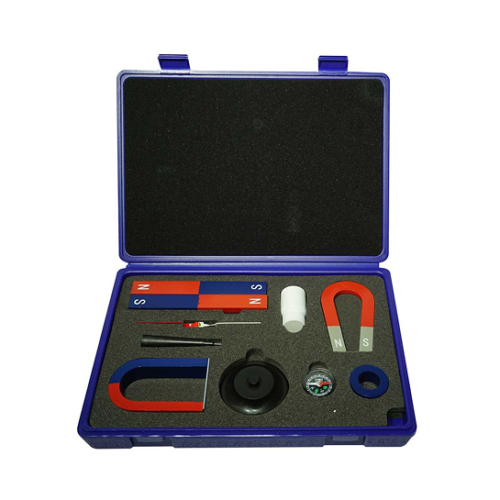

Magnet Teaching and Demonstration Range
From $7.50 (Ex GST)
Hybridisation Oven
$6,274.00(Ex GST)
Wash Bottle with Flexible Straw, Leakproof, Material LDPE, High Quality - Each
From $2.30 (Ex GST)
Universal Indicator pH Test Paper Strips, Broad Range Laboratory Type
From $8.90 (Ex GST)
You May Also Need
Block for Falcon Tubes
From $255.00 (Ex GST)
Flat Block for Vials
$254.00(Ex GST)
Hybridisation Oven Carousel Suit
From $1,216.00 (Ex GST)
Hybridisation Oven Platform
From $1,366.00 (Ex GST)

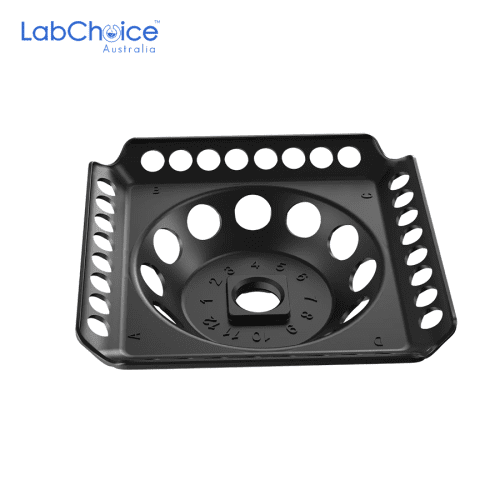

Micro Tray Block
