AC Theory Electricity Kit with Signal Generator

Description

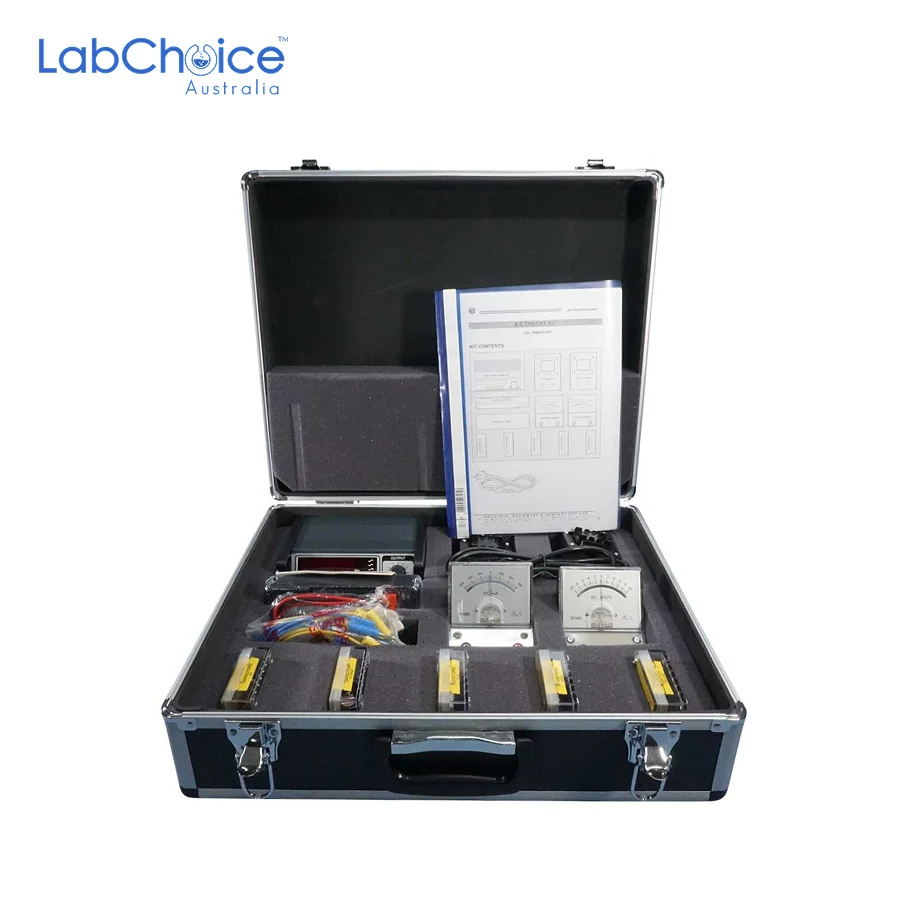

The AC Theory Electricity Kit with Signal Generator, also known as an AC circuits teaching kit or alternating current theory experiment set, is designed for studying practical AC circuit behaviour in university, trade school and advanced laboratory teaching environments. This kit supports hands-on investigation of inductance, reactance, impedance, power factor, electrical losses and electrical resonance, helping students connect electrical theory with measurable circuit behaviour. The kit is supplied with a very accurate digital sine and square wave signal generator, together with capacitors, a resistor, 2 × 2 Henry inductors, analogue meters and digital meters as listed.

Using the included components, students can demonstrate the time relationship between voltage and current, including lead and lag behaviour in capacitive and inductive AC circuits. The kit is supplied complete with instruction sheets and experiment sheets, supporting structured practical activities for AC circuit analysis and electrical training. All components are housed in sponge protection inside a strong carry case, helping keep the kit organised and protected between classroom, laboratory or training sessions.

Users should confirm included component values, meter ranges, signal generator specifications, power requirements, lead compatibility and experiment procedures before ordering or use. Use only within the rated limits of the components, meters and signal generator. Do not overload inductors, capacitors, resistors, meters or generator outputs. Electrical circuits should be assembled with power off, checked before energising and used only under approved instructor or laboratory supervision.

This product is intended for laboratory or educational settings only and should be used under appropriate supervision. This item is supplied as the selected AC theory electricity kit with signal generator and listed components only. Additional leads, external power supplies, oscilloscopes, replacement components, PPE and other electrical accessories are not included unless specified separately.

LabChoice Australia supplies AC Theory Electricity Kits and electrical teaching equipment for universities, trade schools, technical training facilities and advanced physics laboratories requiring practical apparatus for alternating current circuit theory.
