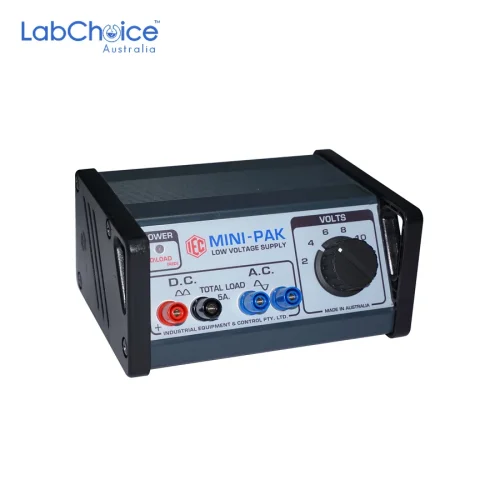

MiniPak Switched AC/DC Power Supply, 2 – 12 V, 5 A
$267.50(Ex GST)
$267.50(Ex GST)
- Compact MiniPak general purpose power supply for laboratory and education use
- Provides switched AC and DC outputs at 2, 4, 6, 8, 10 and 12 V
- Output current listed as about 5 to 6 A
- DC output is full-wave rectified but not filtered
- Uses 4 mm safety sockets instead of 4 mm terminals
- Rear panel mains switch
- Power-on LED indicator included
- LED changes from green to red when output overload occurs
- Automatically resetting overload protection with audible click
- Housing includes carry handles and rubber feet
[request_quote_button]
- Description
- Datasheets & Manuals
Description
The MiniPak Switched AC/DC Power Supply, also known as a compact low-voltage classroom power supply, is designed for school science laboratories and physics classrooms requiring selectable AC and DC outputs in a smaller housing format. This IEC MiniPak power supply provides switched output voltages at 2, 4, 6, 8, 10 and 12 V in both AC and DC. The output current is listed as about 5 to 6 A, supporting a range of compatible low-voltage classroom experiments.
The DC output is full-wave rectified but not filtered. This makes the unit suitable for many general teaching demonstrations, while users should confirm suitability where smoother filtered DC is required. The MiniPak design is more compact than the standard workhorse-style classroom power supply and uses 4 mm safety sockets instead of 4 mm terminals. This supports connection with compatible 4 mm safety leads used in teaching laboratories. The mains switch is positioned on the rear panel, while an LED indicator shows power status. During normal operation, the LED indicates power on. If the output is overloaded, the LED changes from green to red.
Overload protection is provided by an automatically resetting overload system. When the overload trips and resets, it provides an audible click, helping users identify the protection action during classroom operation. The housing includes carry handles and rubber feet, supporting practical bench placement, classroom storage and routine movement between teaching spaces.
This power supply is suitable for basic electricity studies, lamp circuits, motor demonstrations, electromagnet experiments, resistance investigations, current and voltage activities, and other low-voltage classroom practicals using compatible loads. Users should confirm the selected voltage setting, AC or DC output mode, current requirement, lead compatibility and load suitability before operation. Connected circuits must remain within the rated capability of the power supply.
This product is intended for laboratory or educational settings only. As a mains-powered electrical device, it should be used under appropriate teacher or laboratory supervision. This item is supplied as the MiniPak switched AC/DC power supply only. Leads, meters, lamps, motors, circuit boards, loads and additional accessories are not included unless specified separately.
LabChoice Australia supplies MiniPak Switched AC/DC Power Supplies for school science laboratories, physics classrooms, university teaching laboratories and general education environments requiring compact low-voltage power supply equipment.
Datasheets & Manuals
Document :
Product Information Sheet(Pdf)
Amber Volumetric Flask Class A with PE Stopper, BORO 3.3
From $11.90 (Ex GST)
Safety Clamp for Gas Syringe, 100 ML
$49.00(Ex GST)
Law of Conservation of Mass Apparatus Bottle
$64.90(Ex GST)
Condenser Holder Clamp, High Quality, Fits Up to 75mm Diameter Equipment
From $12.00 (Ex GST)
LCD Digital Tube Rotator with 8-Place 50 mL Tube Holder Disk
$1,265.50(Ex GST)
Electricity Kit in Aluminium Case
From $1,457.50 (Ex GST)
Chladni Plate Set (2 Plates) with Violin Bow and Sand Included
$248.90(Ex GST)

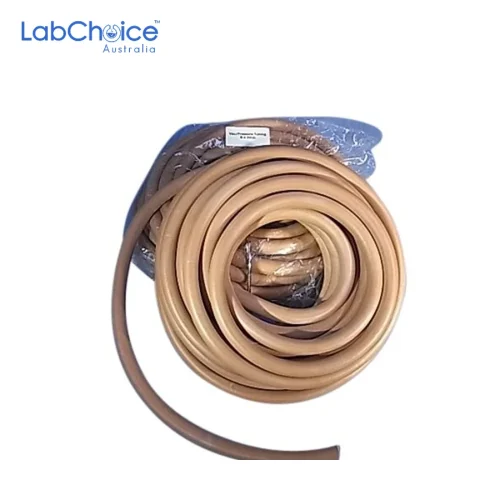

Laboratory Tubing for Bunsen Burner, Vacuum and Pressure
