Handheld pH/ORP/Dissolved Oxygen Meter, IP67 Field Testing with GLP Data Logging

Description

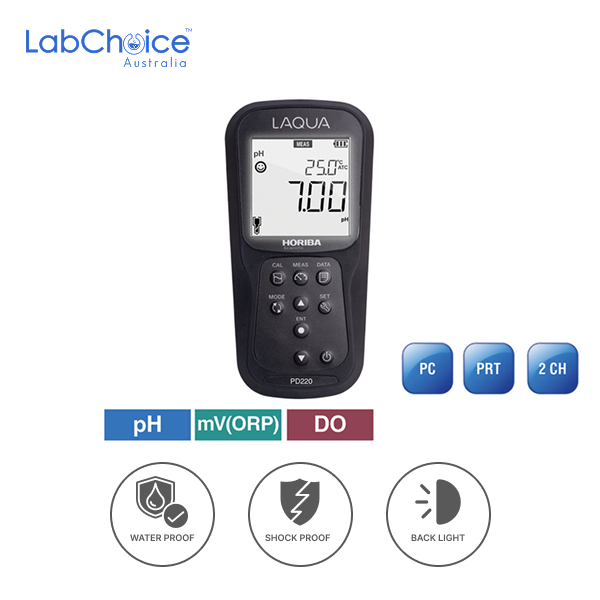

LAQUA PD220 pH, ORP, Dissolved Oxygen and Temperature Handheld Meter is designed for routine water quality testing in the field, combining multi-parameter performance with practical handheld operation. This waterproof standard handheld meter measures pH, ORP, dissolved oxygen, and temperature in one portable unit, making it suitable for environmental monitoring, laboratory use, education, and on-site water analysis. The backlit LCD, built-in electrode stand, and foldable meter stand support efficient daily use, while the IP67 casing is waterproof, dustproof, shock-resistant, scratch-resistant, and non-slip for dependable performance in demanding conditions.

The meter supports automatic pH calibration up to 5 points with USA and NIST pH buffers, or up to 6 points with DIN pH buffers, together with ORP calibration, automatic or manual temperature compensation, and offset and average slope display. Dissolved oxygen measurement is available in ppm, mg/L, and percent saturation, with salinity, temperature, and barometric pressure compensation for more controlled DO testing. Real-time clock and date and time stamp functions support GLP-style record handling, while built-in memory stores up to 1000 data with auto log support. For customer-ready use, the handheld meter kit is supplied in a durable carry case complete with electrodes, 60 mL solutions, operating manual, and 2 x AA alkaline batteries, with USA pH buffers included for this kit configuration.

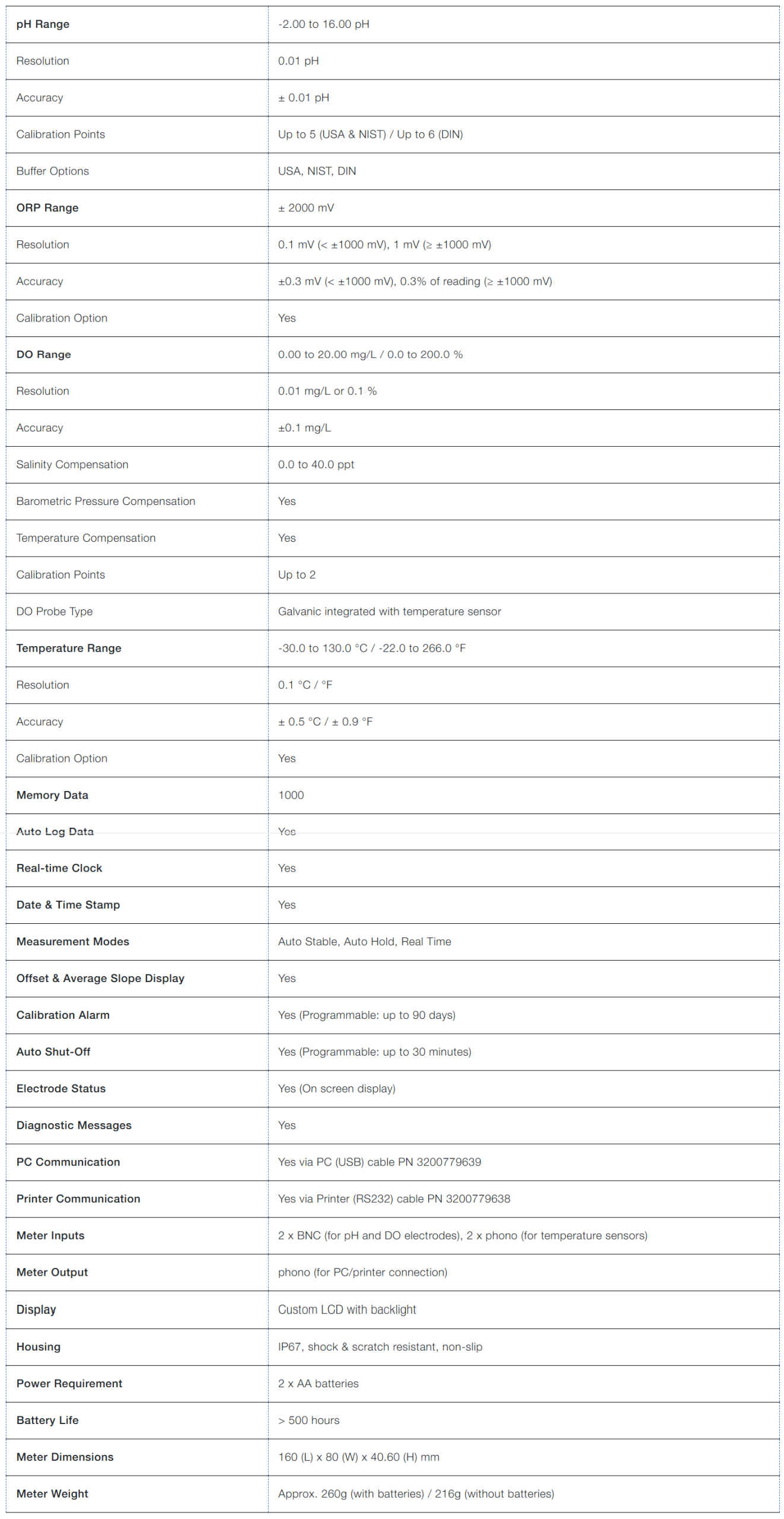

FEATURES

• LAQUA PD220 is a dual-channel handheld meter designed for routine pH, ORP, dissolved oxygen, and temperature testing in field and portable laboratory applications.
• The meter measures pH across a range of -2.00 to 16.00 pH with 0.01 pH resolution and accuracy of ±0.01 pH.
• Automatic pH calibration supports up to 5 points with USA and NIST buffers, or up to 6 points with DIN buffers.
• Buffer options include USA, NIST, and DIN for flexible calibration workflows.
• Offset and average slope display help users review calibration condition more clearly during operation.
• ORP range is ±2000 mV with resolution of 0.1 mV below ±1000 mV and 1 mV at or above ±1000 mV.
• ORP accuracy is ±0.3 mV below ±1000 mV and 0.3% of reading at or above ±1000 mV, with ORP calibration option included.
• Dissolved oxygen range is 0.00 to 20.00 mg/L and 0.0 to 200.0%, supporting routine DO testing in two readout formats.
• DO resolution is 0.01 mg/L or 0.1%, with accuracy of ±0.1 mg/L.
• The meter compensates dissolved oxygen readings for salinity from 0.0 to 40.0 ppt, barometric pressure, and temperature.
• DO calibration supports up to 2 points for routine setup and checking.
• The DO probe type is galvanic and integrated with a temperature sensor.
• Temperature range is -30.0 to 130.0 °C, or -22.0 to 266.0 °F, with 0.1 °C and °F resolution.
• Temperature accuracy is ±0.5 °C or ±0.9 °F, and temperature calibration option is included.
• Automatic or manual temperature compensation supports more controlled measurement handling.
• Real-time clock and date and time stamp support GLP-compliant record handling.
• Built-in memory stores up to 1000 data and supports auto log data for ongoing record keeping.
• Measurement modes include auto stable, auto hold, and real-time measurement for practical day-to-day testing.
• Calibration alarm is programmable up to 90 days, and auto shut-off is programmable up to 30 minutes.
• On-screen electrode status display and diagnostic messages support easier operation and troubleshooting.
• PC communication is supported via PC, USB, cable PN 3200779639, and printer communication is supported via printer, RS232, cable PN 3200779638.
• Meter inputs include 2 x BNC for pH and DO electrodes, and 2 x phono for temperature sensors, with phono output for PC or printer connection.
• Display is a custom LCD with white LED backlight and 50 x 50 mm viewing area for clear reading.
• Housing is IP67 rated, waterproof, dustproof, shock-resistant, scratch-resistant, and non-slip for dependable field use.
• Built-in electrode holder allows 2 electrodes to be attached, supporting practical bench or field setup.
• The meter is powered by 2 x AA batteries and offers battery life of more than 500 hours.
• Meter dimensions are 160 x 80 x 40.60 mm, and meter weight is approximately 260 g with batteries or 216 g without batteries.
• The handheld meter kit is supplied in a durable carry case complete with electrodes, 60 mL USA pH buffer solutions, operating manual, and 2 x AA alkaline batteries.
• Meter warranty is 3 years.
