Handheld pH/DO Meter, IP67 Field Testing with Backlit LCD

Description

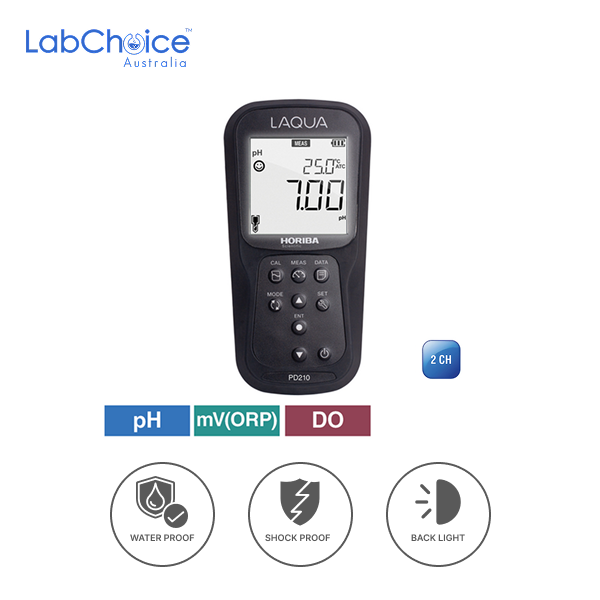

LAQUA PD210 pH, ORP, Dissolved Oxygen and Temperature Handheld Meter is designed for routine water quality testing in the field, combining multi-parameter performance with practical handheld operation. This waterproof dual-channel meter measures pH, ORP, dissolved oxygen, and temperature in one portable unit, making it suitable for environmental testing, laboratory use, education, and on-site water analysis. The backlit LCD, built-in electrode stand, and foldable meter stand support convenient day-to-day use, while the IP67 housing is waterproof, dustproof, shock-resistant, scratch-resistant, and non-slip for dependable use in demanding conditions.

The meter supports automatic pH calibration up to 5 points with USA and NIST buffers, or up to 6 points with DIN buffers, together with ORP calibration, automatic or manual temperature compensation, and offset and average slope display. Dissolved oxygen measurement is available in ppm, mg/L, and percent saturation, with salinity, temperature, and barometric pressure compensation for more controlled testing. Built-in memory stores up to 500 data with auto log support, while auto stable, auto hold, and real-time modes improve workflow convenience. The handheld meter kit is supplied in a durable carry case complete with electrodes, 60 mL USA pH buffer solutions, operating manual, and 2 x AA alkaline batteries, making it a practical ready-to-use solution for portable water quality testing.

FEATURES

• LAQUA PD210 is a dual-channel handheld meter designed for routine pH, ORP, dissolved oxygen, and temperature testing in field and portable laboratory applications.

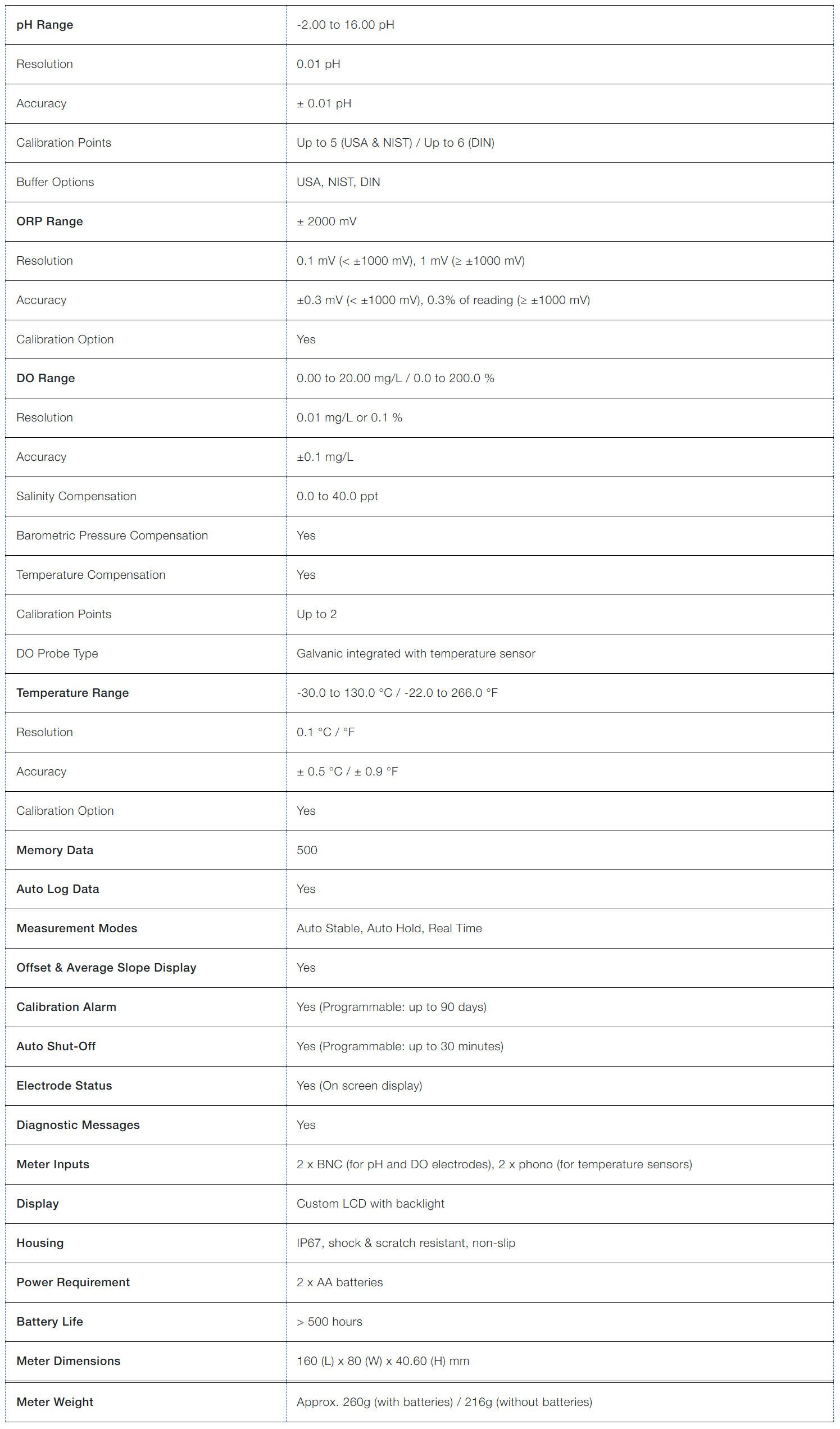

• The meter measures pH across a range of -2.00 to 16.00 pH with 0.01 pH resolution and accuracy of ±0.01 pH.
• Automatic pH calibration supports up to 5 points with USA and NIST buffers, or up to 6 points with DIN buffers.
• Buffer options include USA, NIST, and DIN for flexible calibration workflows.
• Offset and average slope display help users review calibration condition more clearly during operation.
• ORP range is ±2000 mV with resolution of 0.1 mV below ±1000 mV and 1 mV at or above ±1000 mV.
• ORP accuracy is ±0.3 mV below ±1000 mV and 0.3% of reading at or above ±1000 mV, with ORP calibration option included.
• Dissolved oxygen range is 0.00 to 20.00 mg/L and 0.0 to 200.0%, supporting routine DO testing in two readout formats.
• DO resolution is 0.01 mg/L or 0.1%, with accuracy of ±0.1 mg/L.
• The meter compensates dissolved oxygen readings for salinity from 0.0 to 40.0 ppt, barometric pressure, and temperature.
• DO calibration supports up to 2 points for routine setup and checking.
• The DO probe type is galvanic and integrated with a temperature sensor.
• Temperature range is -30.0 to 130.0 °C, or -22.0 to 266.0 °F, with 0.1 °C and °F resolution.
• Temperature accuracy is ±0.5 °C or ±0.9 °F, and temperature calibration option is included.
• Automatic or manual temperature compensation supports more controlled measurement handling.
• Built-in memory stores up to 500 data and supports auto log data for ongoing record keeping.
• Measurement modes include auto stable, auto hold, and real-time measurement for practical day-to-day testing.
• Calibration alarm is programmable up to 90 days, and auto shut-off is programmable up to 30 minutes.
• On-screen electrode status display and diagnostic messages support easier operation and troubleshooting.
• Meter inputs include 2 x BNC for pH and DO electrodes, and 2 x phono for temperature sensors.
• Display is a custom LCD with white LED backlight and 50 x 50 mm viewing area for clear reading.
• Housing is IP67 rated, waterproof, dustproof, shock-resistant, scratch-resistant, and non-slip for dependable field use.
• The meter is powered by 2 x AA batteries and offers battery life of more than 500 hours.
• Meter dimensions are 160 x 80 x 40.60 mm, and meter weight is approximately 260 g with batteries or 216 g without batteries.
• PD210-K kit contents include 9652-20D plastic-body, gel-filled pH electrode integrated with temperature sensor and 2 m cable, 9552-20D galvanic DO probe integrated with temperature sensor and 2 m cable, pH 4.01, 7.00, and 10.01 buffers, 60 mL each, electrode adapter, manual and quick guide, and carrying case.
• The handheld meter kit is supplied complete with electrodes, 60 mL solutions, operating manual, and 2 x AA alkaline batteries.
• Meter warranty is 3 years.
