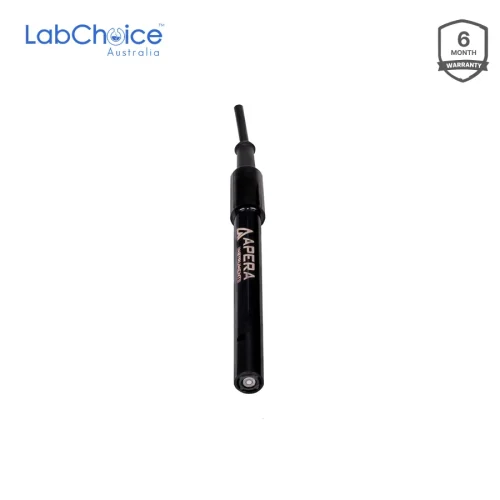

Conductivity/Temperature Electrode 2310T-S, 8-Pin Connector

Description

Conductivity/Temperature Electrode 2310T-S, K=10, 8-Pin Connector is designed for high-range conductivity measurement in samples with strong ionic concentration. It is suitable for testing solutions where standard low-range or mid-range conductivity electrodes may not provide the correct working range.

This electrode is suitable for high concentration electrolytes, saltwater and other high-conductivity liquid samples. It can be used in laboratory testing, water analysis, process monitoring, environmental work and quality-control applications where conductivity values may reach very high levels. The K=10 cell constant is intended for high-range conductivity measurement. The supplied information lists a measuring range of 20 to 2,000 mS/cm, making this electrode suitable for demanding conductivity applications involving concentrated solutions.

The sensor ring is coated with platinum black to support stable measurement performance in high-conductivity samples. This design helps the electrode deliver consistent readings when used with a compatible conductivity meter and correct calibration procedure. A built-in temperature sensor allows the electrode to measure temperature at the same time as conductivity. This enables automatic temperature compensation, helping the connected meter adjust conductivity readings according to sample temperature. The 8-pin connector is designed for compatible conductivity meters with the matching input. Users should confirm compatibility before replacing an existing electrode, especially where the meter model, connector type or conductivity range requirement must match exactly.

LabChoice Australia supplies high-range conductivity electrodes, temperature probes, pH electrodes and meter accessories for laboratories, water testing, saltwater analysis, industrial QC, research and field measurement workflows.

Features

• Model: 2310T-S Conductivity/Temperature Electrode
• Electrode type: High-range conductivity/temperature electrode
• Cell constant: K=10
• Measuring range: 20 to 2,000 mS/cm
• Sensor type: Ring conductivity sensor
• Sensor coating: Platinum black coating
• Accuracy after calibration: ±1.5% F.S.
• Accuracy without calibration: ±10% F.S.
• Temperature sensor: Built in
• Temperature compensation: Supports automatic temperature compensation
• Connector type: 8-pin connector
• Suitable sample type: High-conductivity solutions, saltwater and concentrated electrolytes
• Compatible meter type: Conductivity meters with matching 8-pin connector

Warranty

This electrode is supplied with a 6-month warranty against defects in material and workmanship, subject to the supplier warranty terms.

The warranty does not cover accidental damage, improper use, normal wear and tear, transportation damage, incorrect storage, failure to follow product instructions, unauthorised maintenance, unauthorised modifications, unauthorised repair, unsuitable product combinations or external causes beyond normal product use.
