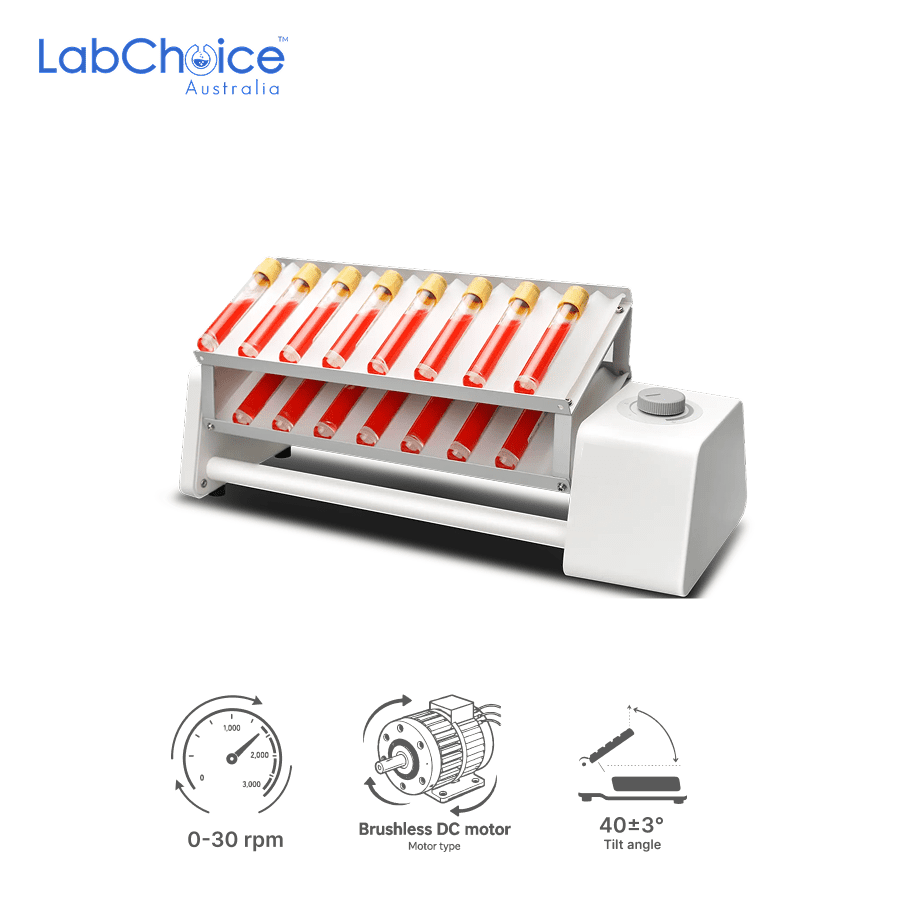

Long Deck Double Layer Rocking Tube Rotator Brushless DC Motor
$612.50(Ex GST)
$612.50(Ex GST)
- Double-layer long deck supports organised placement of compatible laboratory samples
- Adjustable speed range from 0 to 30 rpm suits gentle, low-speed mixing procedures
- Fixed 40 ± 3° tilt angle provides consistent rocking movement during operation
- Continuous operating mode supports procedures requiring uninterrupted sample motion
- Brushless DC motor supports reliable extended use and reduced maintenance
- Maximum load capacity of 1 kg accommodates compatible laboratory containers
- Available with various silicone mattress accessories for flexible sample arrangement
[request_quote_button]
- Description
Description
The Long Deck Double-Layer Rocking Rotator, also known as a double-deck rocking mixer, provides gentle and continuous movement for laboratory samples positioned on compatible silicone mattress accessories. Its rocking rotator action is designed for procedures requiring controlled sample movement without vigorous shaking or high-speed agitation.
The adjustable speed range from 0 to 30 rpm allows users to select an appropriate movement rate according to the sample type, container format and laboratory protocol. A fixed tilt angle of 40 ± 3° generates a consistent rocking motion across the working decks during routine laboratory mixing procedures.
The double-layer, long-deck configuration provides two working levels for arranging compatible samples and laboratory containers. The instrument supports a maximum total load of 1 kg, allowing users to organise samples across the available deck surfaces while remaining within the specified operating limit.
Continuous operation makes the rotator suitable for laboratory workflows requiring uninterrupted low-speed movement over extended periods. Its brushless DC motor supports dependable operation and reduces the routine maintenance requirements associated with conventional brushed motor systems.

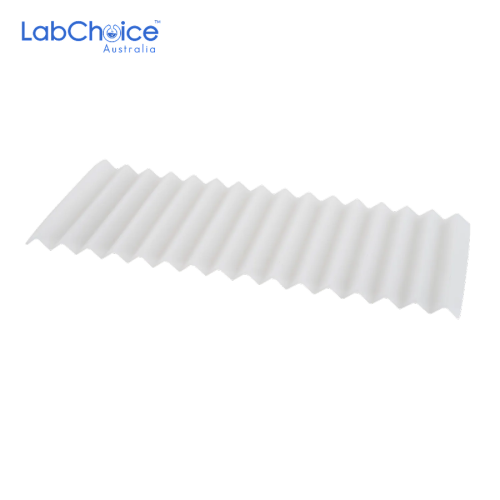

Various silicone mattress accessories are available to accommodate different sample arrangements. The controlled rocking action can support gentle reagent blending, maintenance of suspended materials, routine sample preparation, staining procedures, washing steps and incubation workflows where continuous low-speed rocking is specified by the laboratory method.
LabChoice Australia supplies this Long Deck Double-Layer Rocking Rotator for biotechnology, molecular biology, biochemistry, microbiology, clinical research, pharmaceutical research, university, educational and general life-science laboratories. Its 405 × 160 × 160 mm dimensions, 2.2 kg instrument weight, 100 to 240 V electrical input and permitted operating range of 5 to 40°C and up to 80% relative humidity support practical use in controlled laboratory environments.
| Specification | Details |
|---|---|
| Tilt angle | 40±3° |
| Motion type | Rocking Rotator Mixer |
| Speed range | 0~30 rpm |
| Run type | Continuous |
| Max. load capacity | 1 kg |
| Motor type | Brushless DC motor |
| Voltage | 100-240 V |
| Frequency | 50/60Hz |
| Power | 15 W |
| Dimension [D×W×H] | 405×160×160 mm |
| Weight | 2.2 kg |
| Permissible ambient temperature | 5-40℃ |
| Permissible ambient humidity | 80% RH |
