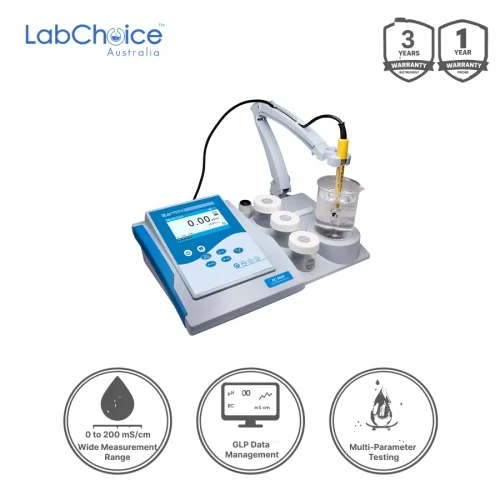

Conductivity Meter Kit EC9500 Research-Grade with TestBench, 0 to 200 mS/cm

Description

Conductivity Meter Kit EC9500 Research-Grade with TestBench, 0 to 200 mS/cm, also known as a research-grade benchtop conductivity meter kit with integrated workstation, is designed for laboratories that need advanced conductivity-related measurement, structured data management and export-ready records.

This kit is suitable for research laboratories, university laboratories, QC teams, water-quality testing, method development and analytical workflows where conductivity, TDS, salinity, resistivity and temperature readings need to be measured, stored, reviewed and exported.

The included Apera TestBench provides an integrated workstation with a flexible electrode holder, intelligent magnetic stirrer and buffer organisers. This helps users keep calibration standards, electrode positioning and sample mixing organised during routine and research-grade measurement workflows.

The EC9500 includes an advanced interface with plain-language menus, graphic screen prompts and multi-language support. The i-Guide function provides on-screen setup and calibration instructions, helping users follow procedures without relying heavily on manual reading.

The included 2401T-F conductivity electrode supports high-accuracy measurement across the listed 0 to 200 mS/cm range at ±0.5% F.S. accuracy. The meter supports conductivity, TDS, salinity and resistivity workflows, with one-tap parameter switching during compatible testing.

Flexible conductivity calibration supports 1–4 point automatic calibration using standard solutions or user-defined standards. Common standards include 84 µS/cm, 1413 µS/cm, 12.88 mS/cm and 111.8 mS/cm.

Powerful GLP data management stores up to 2000 data sets and can include electrode ID, user ID, sample ID, company name and calibration records. Data can be exported by USB to PC, and Web PC-Link software supports measurement and calibration record export in LIMS-ready CSV or JSON formats.

Included with this Conductivity Meter Kit: EC9500 Conductivity Meter, 606 Test-Bench with Flexible Electrode Holder, 2401T-F Conductivity Electrode, 84 µS Conductivity Calibration Solution, 1413 µS Conductivity Calibration Solution, 12.88 mS Conductivity Calibration Solution, Stirrer Power Cable, USB Cable, PC-Link 9500 Flash Drive, 9V Adapter, 3 Calibration Vials, 3 L200 Stir Beads and User Manual.

Users should follow correct calibration, rinsing, electrode handling, stirring setup and data export procedures to support reading stability, electrode service life and reliable record keeping. Electrode selection should be confirmed for high-range conductivity or high-purity water testing.

Note before publishing: the supplied kit table lists EC9500 pH/Conductivity Meter, while the product name focuses on the EC9500 Research-Grade Benchtop Conductivity Meter Kit. Please confirm final product naming before upload.

LabChoice Australia supplies Conductivity Meter Kits for schools, universities, research laboratories, water-quality users and QC teams requiring research-grade EC, TDS, salinity and resistivity measurement with TestBench workflow support, GLP data storage and LIMS-ready export.

Features

• EC9500 research-grade benchtop conductivity meter kit
• Conductivity range: 0 to 200 mS/cm
• Conductivity accuracy: ±0.5% F.S.
• Measures conductivity / EC
• Measures TDS
• Measures salinity
• Measures resistivity
• Supports temperature measurement through compatible ATC setup
• 2401T-F conductivity electrode included
• 2401T-F electrode with ATC
• Electrode cell constant: K = 1.0
• Glass-body conductivity electrode
• Apera 606 Test-Bench included
• Integrated workstation format
• Flexible electrode holder included
• Intelligent magnetic stirrer included
• Buffer organisers included
• Advanced plain-language menu interface
• Graphic screen prompts
• Multi-language support: English, German, Spanish and Chinese
• i-Guide on-screen tutorials
• Step-by-step setup guidance
• Step-by-step calibration guidance
• Manual data logging
• Automatic data logging
• GLP-compliant data storage
• Stores up to 2000 data sets
• Stores electrode ID
• Stores user ID
• Stores sample ID
• Stores company name
• Optional calibration password protection
• USB data export to PC
• Data export to mini-printer supported, mini-printer sold separately
• Web PC-Link software support Supports PC and Mac connection
• Data export in LIMS-ready CSV format
• Data export in LIMS-ready JSON format
• 1–4 point automatic conductivity calibration
• Standard calibration solutions: 84 µS/cm, 1413 µS/cm, 12.88 mS/cm and 111.8 mS/cm
• Supports user-defined conductivity calibration standards
• One-tap switching among conductivity, TDS, salinity and resistivity
• Multiple salinity modes: general salinity, saltwater salinity and NaCl salinity
• Standard BNC conductivity connector
• Compatible with 2310T-F electrode for up to 2000 mS/cm applications
• Compatible with DJS-0.1-F electrode for high-purity water applications
• RCA temperature connector
• NTC 30KΩ temperature connector compatibility
• Conductivity calibration solutions included: 84 µS, 1413 µS and 12.88 mS, 50 mL each
• Stirrer power cable included
• USB cable included
• PC-Link 9500 flash drive included
• 9V adapter included
• 3 calibration vials included
• 3 L200 stir beads included
• User manual included
• Calibration routine, TestBench setup, magnetic stirring speed, electrode selection, salinity mode, PC-Link export and sample range should be confirmed before use

Warranty

The instrument is covered for defects in material and workmanship for three years, while the probe is covered for six months from delivery, subject to the manufacturer’s warranty terms.

The limited warranty does not cover issues caused by accidental damage, improper use, normal wear and tear, transport, storage, failure to follow product instructions, unauthorised maintenance, unauthorised modification, unauthorised repair, incompatible use with other products or materials, abuse, accidents or external causes beyond reasonable control.

What’s in the Kit?
