Handheld pH/ORP/Temperature Meter, IP67 Waterproof Field Testing with GLP Data Logging

Description

LAQUA PH220 pH, ORP and Temperature Handheld Meter is designed for routine water quality testing in the field, combining precise measurement with practical portability. This waterproof handheld meter measures pH, ORP, and temperature in one unit and features a backlit LCD, built-in electrode stand, and foldable meter stand for convenient use across laboratory, environmental, and on-site testing applications. Its IP67 housing is waterproof, dustproof, shock-resistant, scratch-resistant, and non-slip, making it suitable for demanding working conditions where reliable handheld performance matters.

The meter supports automatic pH calibration up to 5 points with USA and NIST pH buffers, or up to 6 points with DIN pH buffers, together with 0.01 pH resolution, offset and average slope display, ORP calibration option, and automatic or manual temperature compensation. For better data control, the PH220 includes a real-time clock and date and time stamp for GLP compliance, built-in memory for up to 1000 data, and auto log support. PC connection by USB cable and printer connection by RS232 cable also support data collection and printout workflows. For customer convenience, the handheld meter kit is supplied in a durable carry case complete with electrode, 60 mL solutions, operating manual, and 2 x AA alkaline batteries, with USA pH buffers included for this kit configuration.

FEATURES

• LAQUA PH220 is a handheld pH, ORP, and temperature meter designed for routine water quality testing in field and portable laboratory applications.

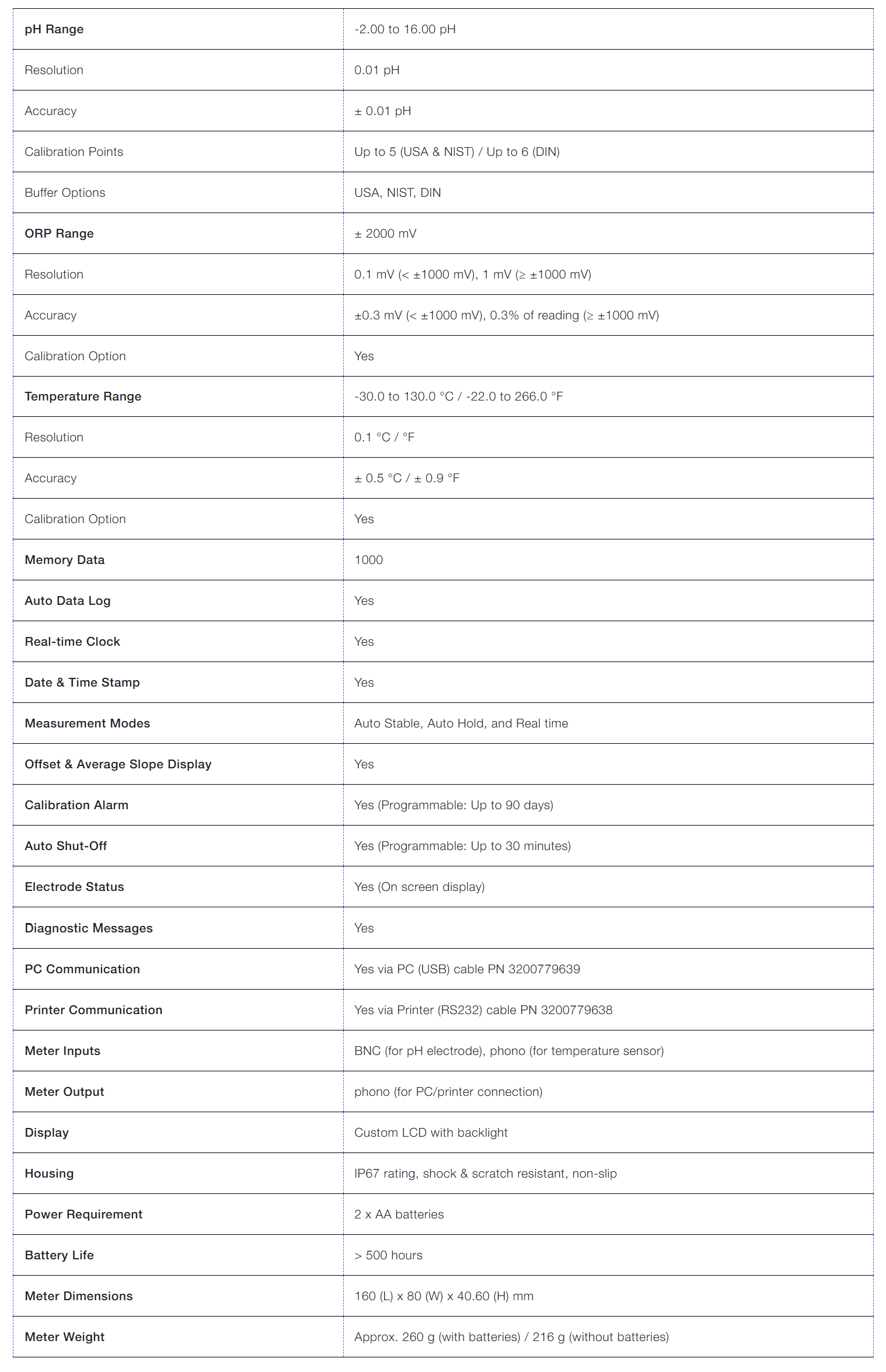

• The meter measures across a pH range of -2.00 to 16.00 pH with 0.01 pH resolution and accuracy of ±0.01 pH.
• It supports automatic pH calibration up to 5 points with USA and NIST buffers, or up to 6 points with DIN buffers, for flexible calibration workflows.
• Buffer options include USA, NIST, and DIN to support different testing requirements.
• Offset and average slope display help users review calibration status more clearly during operation.
• ORP measurement range is ±2000 mV with resolution of 0.1 mV below ±1000 mV and 1 mV at or above ±1000 mV.
• ORP accuracy is ±0.3 mV below ±1000 mV, and 0.3% of reading at or above ±1000 mV, with ORP calibration option included.
• Temperature measurement range is -30.0 to 130.0 °C, or -22.0 to 266.0 °F, with 0.1 °C and °F resolution.
• Temperature accuracy is ±0.5 °C or ±0.9 °F, and the meter supports both temperature calibration and automatic or manual temperature compensation.
• Real-time clock and date and time stamp support GLP-compliant record handling.
• Built-in memory stores up to 1000 data and supports auto data logging for ongoing measurement records.
• Measurement modes include auto stable, auto hold, and real-time measurement for more flexible routine testing.
• Calibration alarm is programmable up to 90 days to support regular maintenance and quality control routines.
• Auto shut-off is programmable up to 30 minutes to help preserve battery life during portable use.
• On-screen electrode status display and diagnostic messages support easier routine operation and troubleshooting.
• The meter includes BNC input for pH electrode connection and phono input for the temperature sensor.
• Meter output uses a phono connection for PC or printer communication.
• PC communication is supported via PC, USB, cable PN 3200779639, and printer communication is supported via printer, RS232, cable PN 3200779638.
• Display is a custom monochrome LCD with white LED backlight and 50 × 50 mm viewing area for clear reading.
• Housing is IP67 rated, waterproof, dustproof, shock-resistant, scratch-resistant, and non-slip for dependable field use.
•  Built-in electrode holder allows 2 electrodes to be attached, and the foldable meter stand supports practical bench or field setup.
• The meter is powered by 2 x AA batteries and offers battery life of more than 500 hours.
• Meter dimensions are 160 × 80 × 40.60 mm, and meter weight is approximately 260 g with batteries or 216 g without batteries.
• The handheld meter kit is presented in a durable carry case complete with electrode, 60 mL solutions, operating manual, and 2 x AA alkaline batteries, with USA pH buffers included for this model kit.
• Meter warranty is 3 years.
